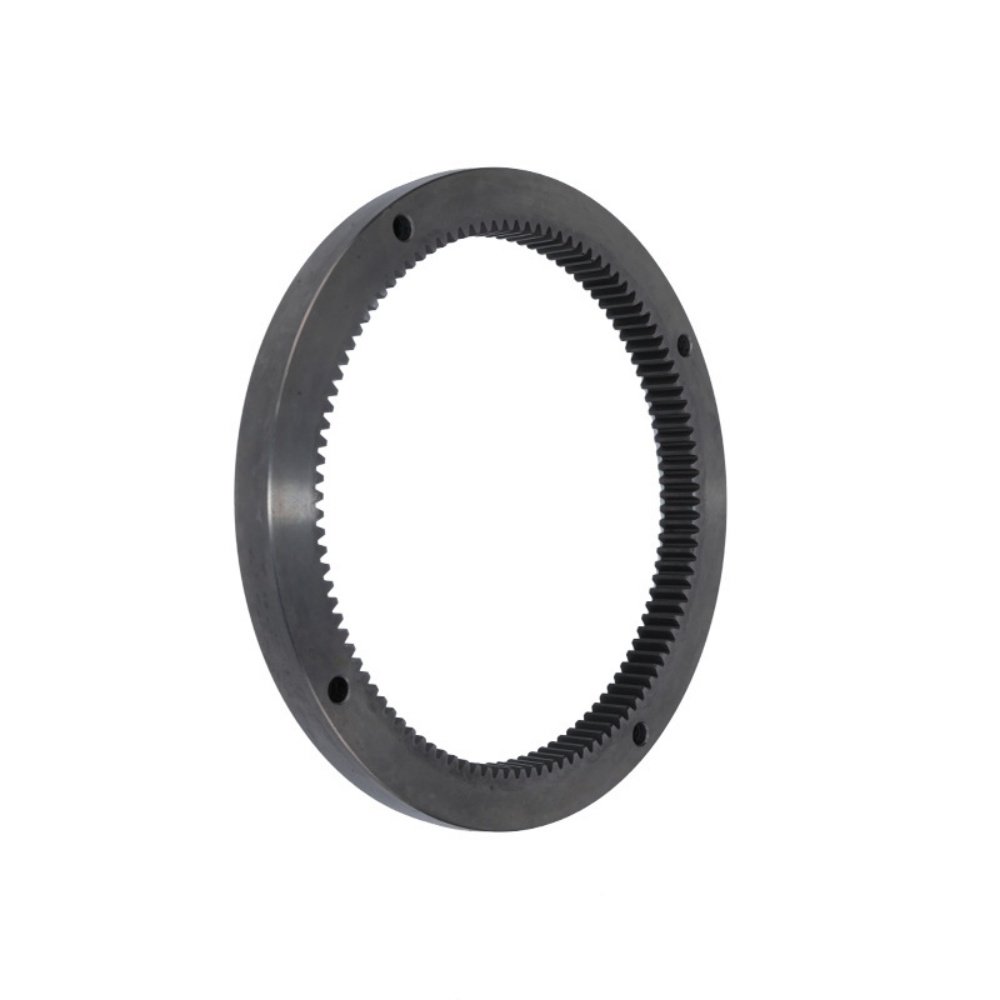

Internal Gears

High-Precision Custom Internal Gears

As a premier all-around hardware processing manufacturer, XML specializes in the production of high-performance custom internal gears. Characterized by teeth cut into the inside surface of a cylinder or ring, internal gears are the foundational components of planetary gear systems. They are engineered to provide exceptional power density, enabling high-torque transmission within a highly compact and space-saving footprint.

Whether your project involves heavy-duty industrial machinery or high-precision robotics, our engineering team ensures every internal ring gear is manufactured to deliver smooth operation, reduced sliding friction, and long-lasting reliability.

Key Features & Manufacturing Advantages

• Space-Saving Efficiency: The unique internal tooth geometry allows for shorter center distances between meshing gears, making them ideal for compact mechanical designs.

• Advanced Machining Capabilities: Utilizing state-of-the-art CNC gear shaping and precision broaching equipment, we achieve tight dimensional tolerances and superior surface finishes.

• Premium Material Selection: Custom-machined from high-strength carbon steel, alloy steel, stainless steel, or specialized engineering plastics to suit your exact application requirements.

• Optimized Power Transmission: Designed to mesh perfectly with external pinion gears, ensuring minimal backlash, lower operational noise, and maximum mechanical efficiency.

• Rapid Manufacturing: Backed by decades of hardware fabrication expertise, XML provides agile 7-day rapid prototyping and highly dependable full-scale production cycles.

Typical Industrial Applications

Our robust custom internal gears are widely utilized in complex mechanical and power transmission systems, including:

• Planetary gearboxes and speed reducers

• Industrial robotics and automation joints

• Heavy-duty construction and mining equipment

• Automotive transmissions and differential systems

• Aerospace and specialized instrumentation
