Explore our robust selection of custom CNC machined indexing plungers, quick-release positioning pins, and spring-loaded locking mechanisms designed for maximum shear strength and flawless indexing accuracy.

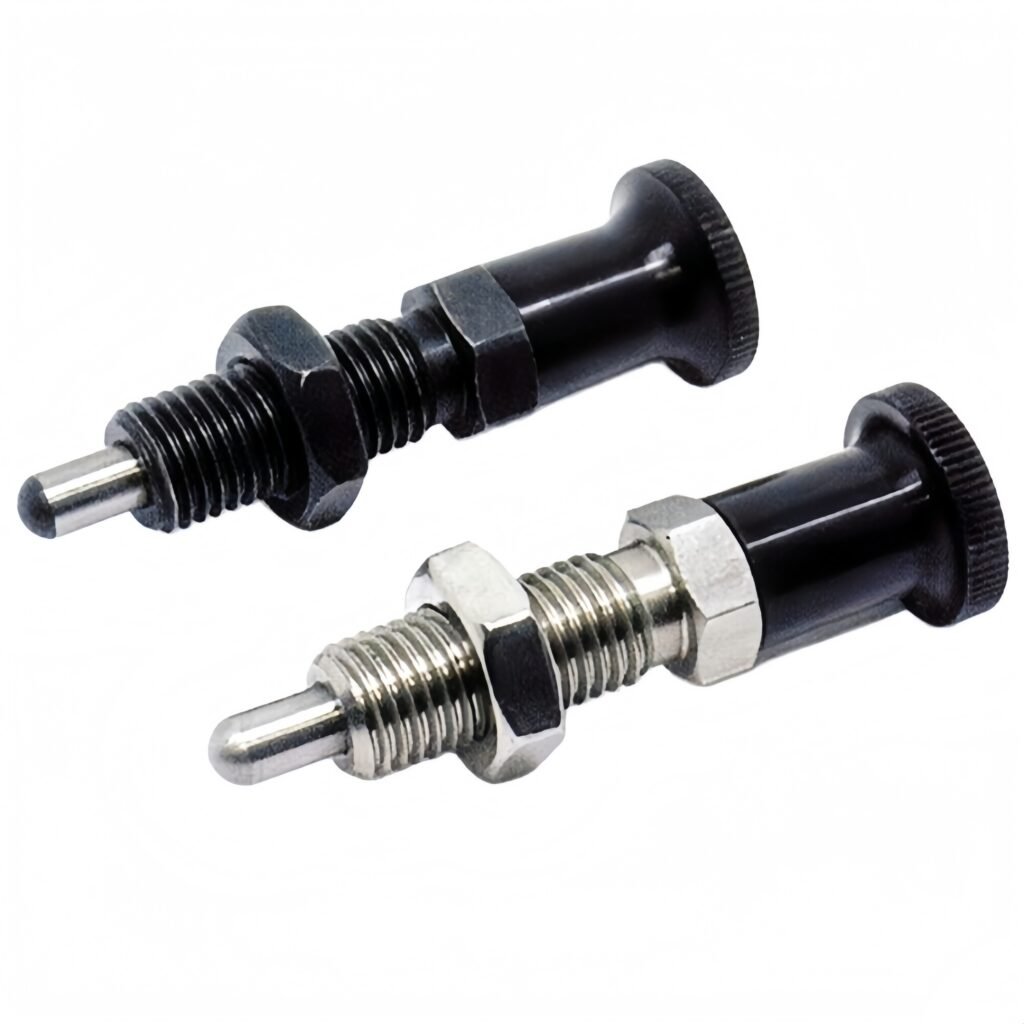

Knob-Operated Indexing Plungers
Designed with high-impact plastic or knurled metal knobs for effortless manual pull-and-release operations. Features a precision-ground locking pin body to ensure repetitive indexing and secure positioning in modular fixtures.

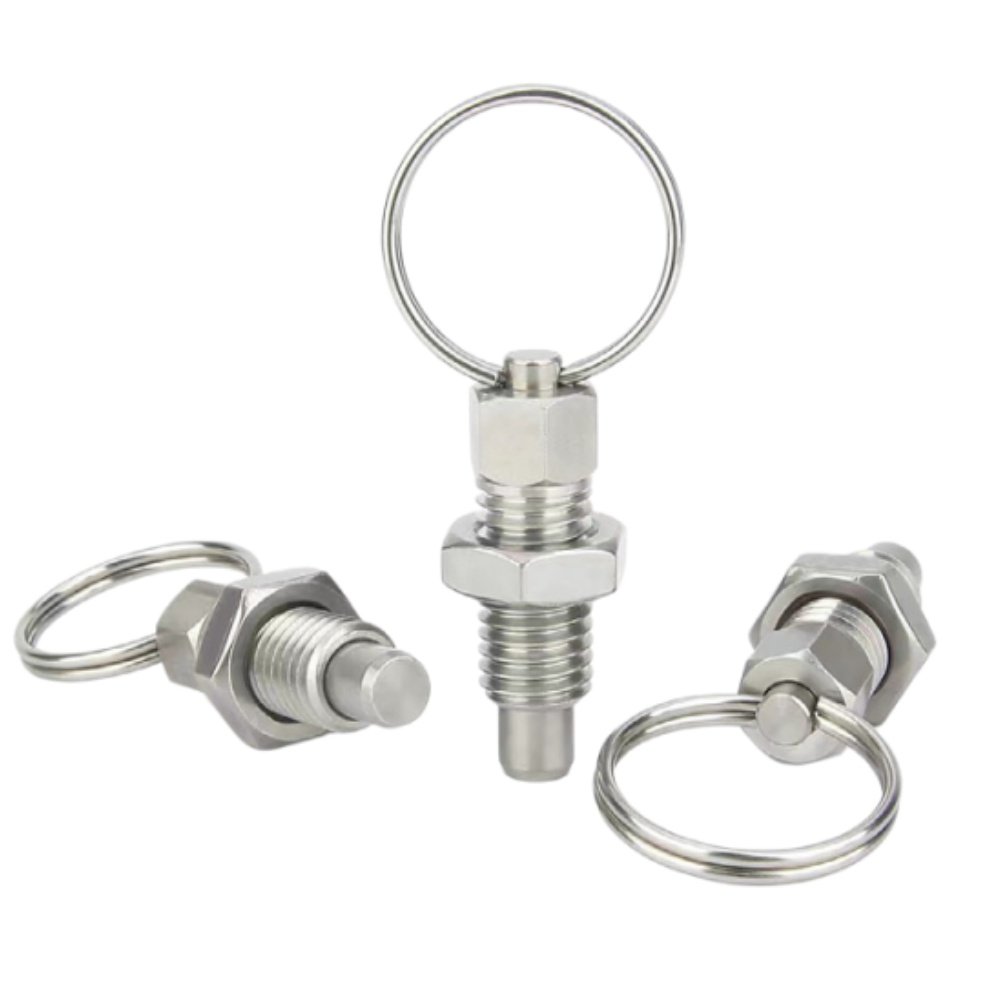

Pull Ring Indexing Plungers
Optimized for space-restricted environments where manual space is highly limited. The integrated stainless steel pull ring allows for fast mechanical or manual extraction, widely applied in automated linkage systems.

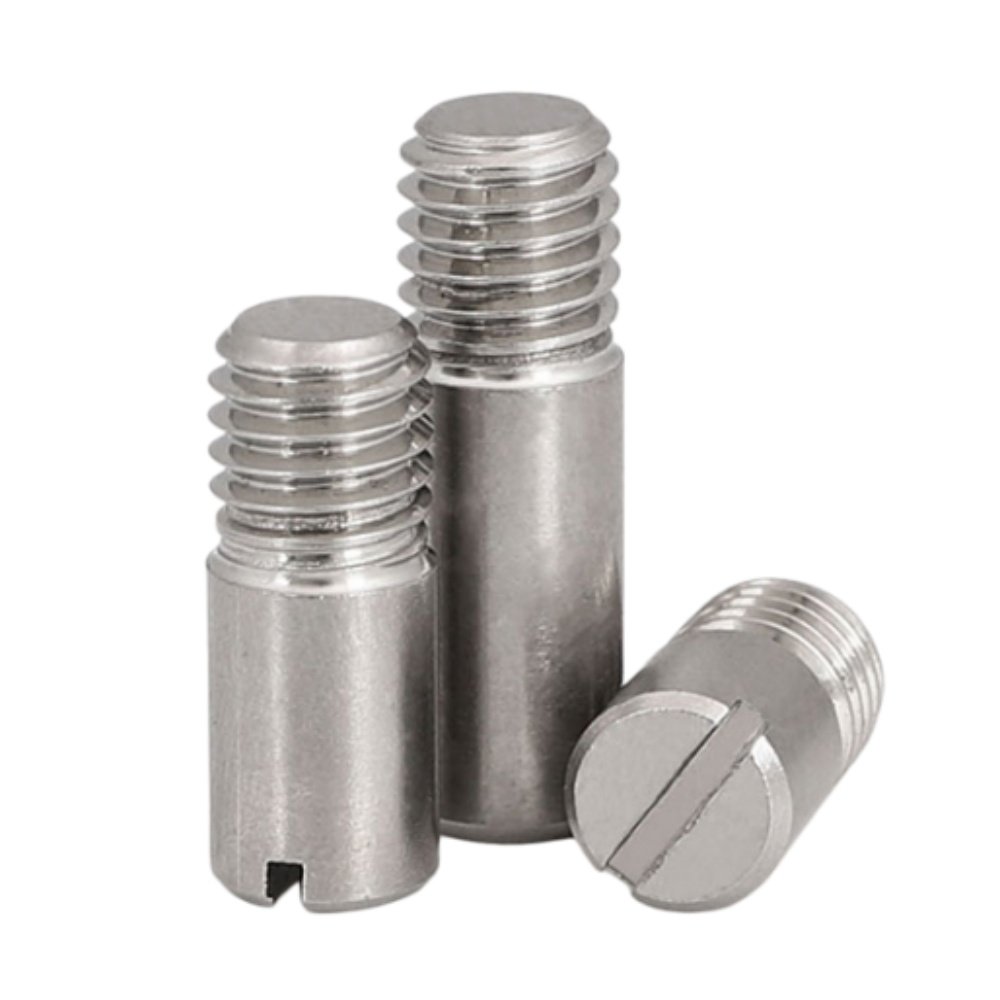

Precision Threaded Locating Pins
Built with precision-cut external threads for direct housing integration. Machined with exact concentricity between the thread and the pin diameter to guarantee zero-backlash locking and reliable heavy-duty holding.
Weld-On Indexing Plungers
Features a weldable steel or stainless steel body sleeve designed for permanent integration into steel frameworks. Built to withstand massive axial and radial loads without structural displacement.
Ball Lock Indexing Plungers
Engineered with an advanced internal spring mechanism and locking balls at the tip. Provides quick, toolless push-button locking capabilities for rapid-change assembly lines and flight-case hardware alignment.

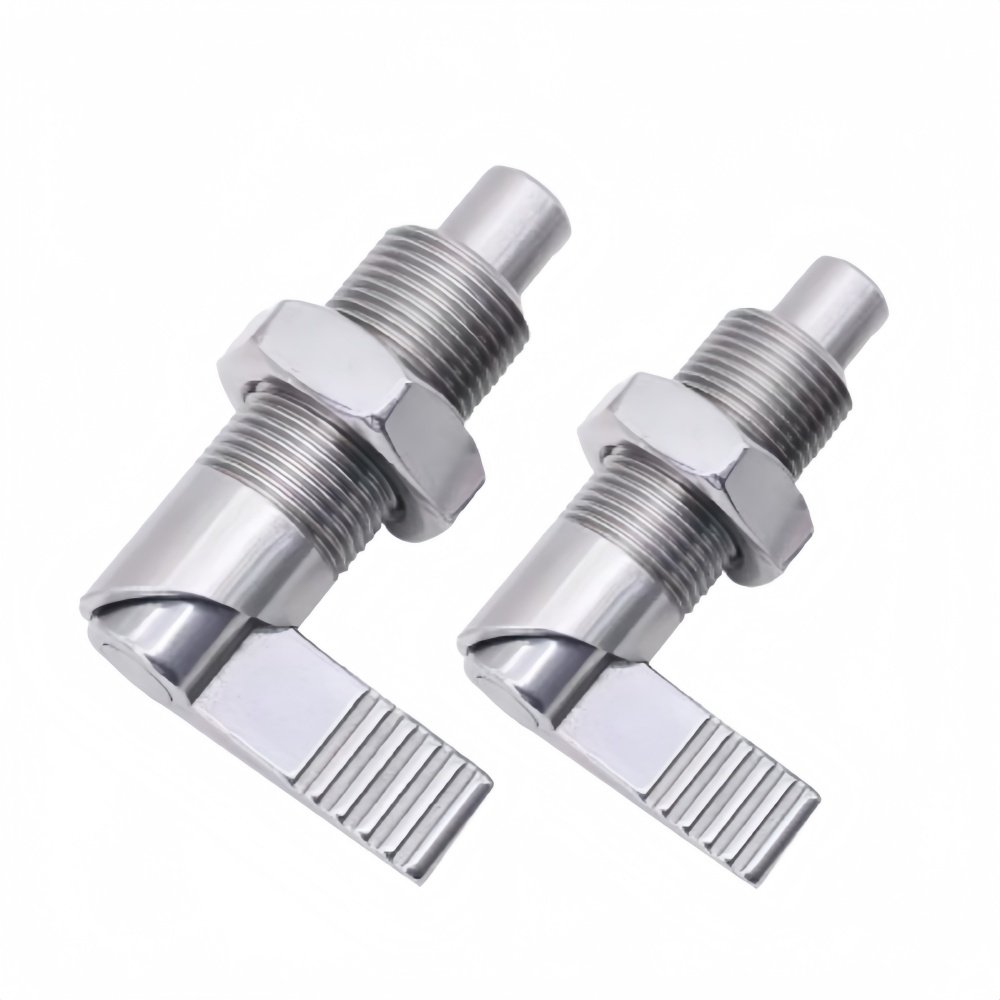

L-Handle Indexing Plungers
Features an ergonomic L-shaped handle that allows the operator to retract and lock the pin in the retracted position by rotating it 90 degrees. Ideal for sequential adjustment tasks and setup changes.

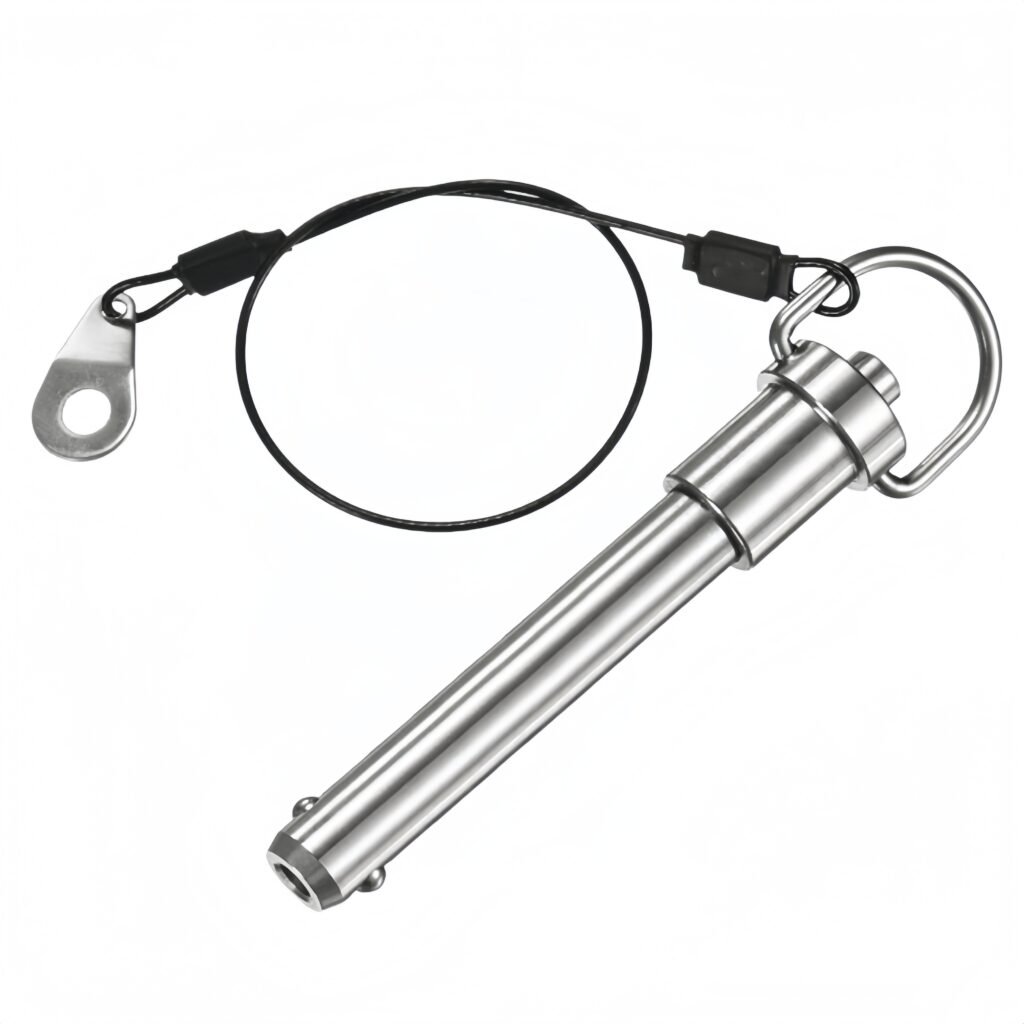

Ring-Handle Quick Release Pins
Features a heavy-duty pull ring paired with an integrated loss-prevention wire lanyard for secure, fast-extraction applications. Available in a wide range of standard diameters and pin lengths, this design is optimized for rapid alignment and frequent shear-load adjustments in modular framing systems.

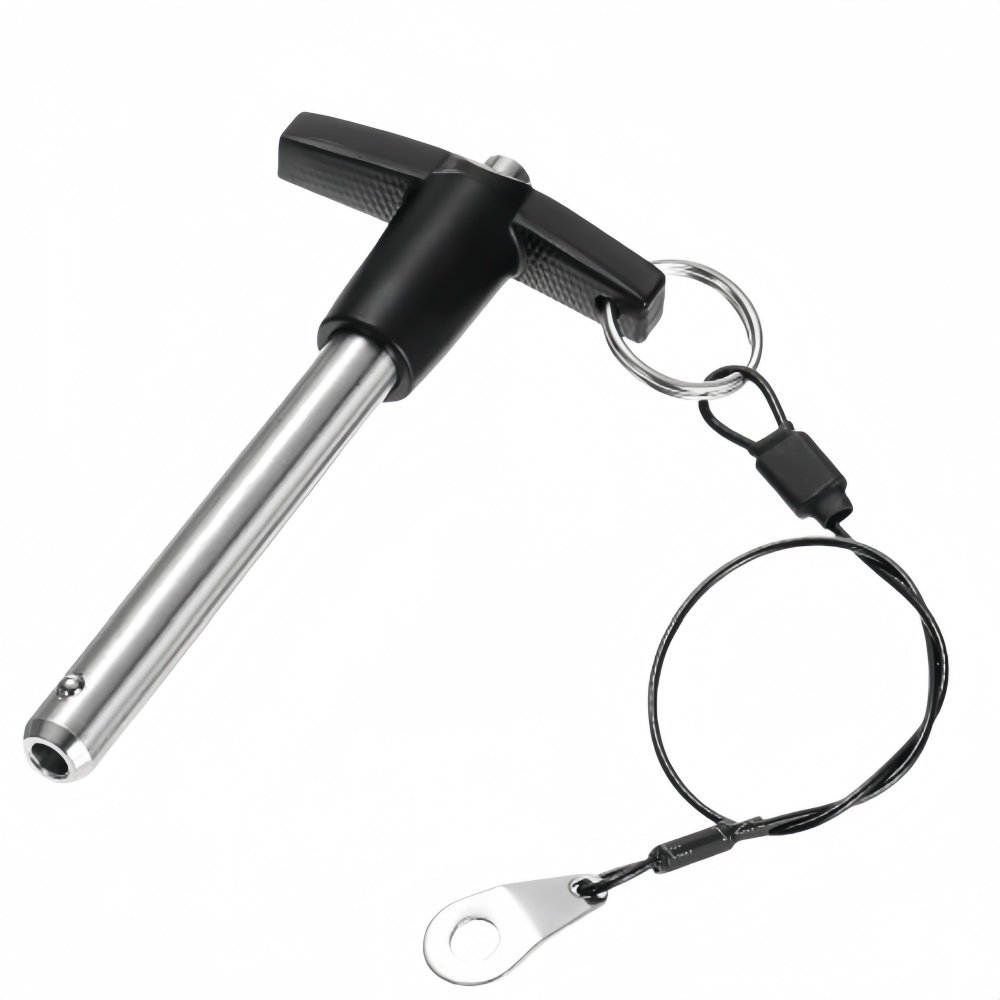

T-Handle Ball Lock Pins
Engineered with an ergonomic T-shaped handle that provides maximum leverage and a firm grip for rapid manual locking. Equipped with a push-button ball-release mechanism and a durable retaining cable, this line offers extensive dimensional sizing to satisfy high-frequency fixturing and industrial machinery setups.
Our high-precision manufacturing floor operates a comprehensive fleet of multi-tasking CNC turning centers, milling machines, and automatic feeding setups. Running 24/7, XML Tech seamlessly processes high-hardness carbon steel, premium stainless steel, brass, and industrial plastics in a single production layout. This uncompromised factory control ensures optimal concentricity, micron-level positional accuracy, and scalable volume capacities for global OEM supply chains.

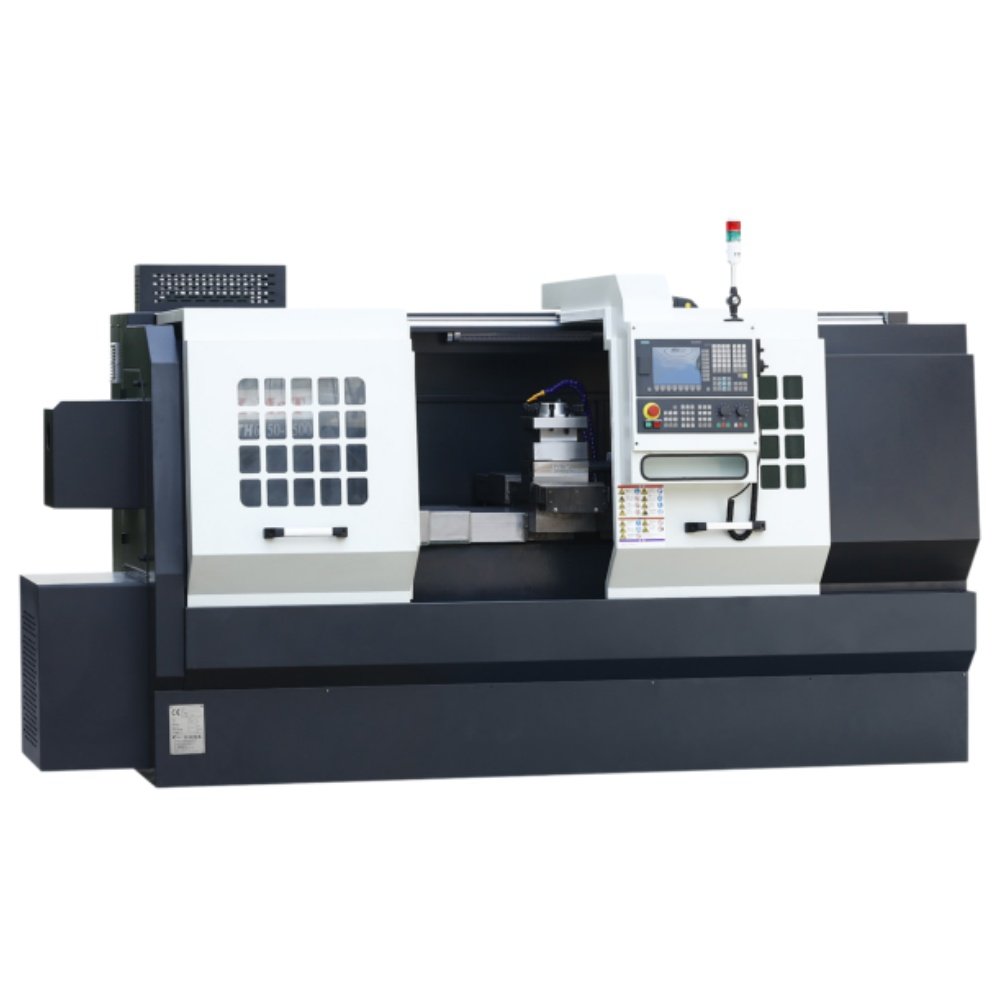

Precision CNC Turning & Milling
Micro-Tolerance Machining
Using cutting-edge CNC precision lathes, we machine plunger bodies, threads, and internal pins directly from high-grade raw bar stock. We rigorously hold tight dimensional tolerances up to ±0.005mm to prevent any wobble or mechanical play during field operations.
Controlled Hardening & Heat Treatment
Extreme Wear Resistance
To survive high shear stress and repetitive mechanical impact, the internal locking pins undergo specialized vacuum heat treatment or induction hardening. This process elevates surface hardness up to HRC 58-62 while maintaining crucial internal core toughness.

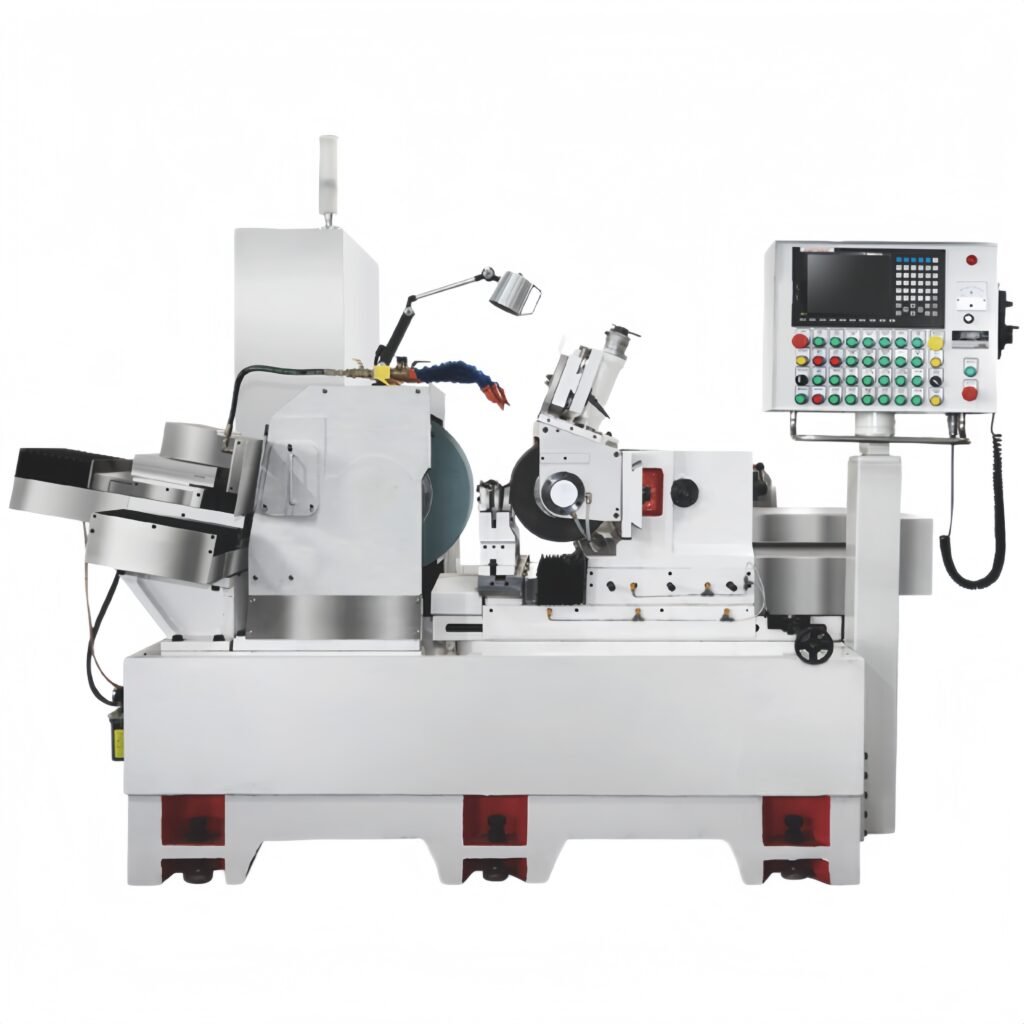

Micron-Level Centerless Grinding
Flawless Pin Surface Finish
Following heat treatment, the indexing pin diameters are finalized on centerless grinding machines. This guarantees micro-inch surface smoothness (Ra≤0.4) and perfect cylindrical geometry, preventing any sticking or jamming inside the plunger sleeves.
100% Structural Quality Assurance
Zero-Defect Alignment

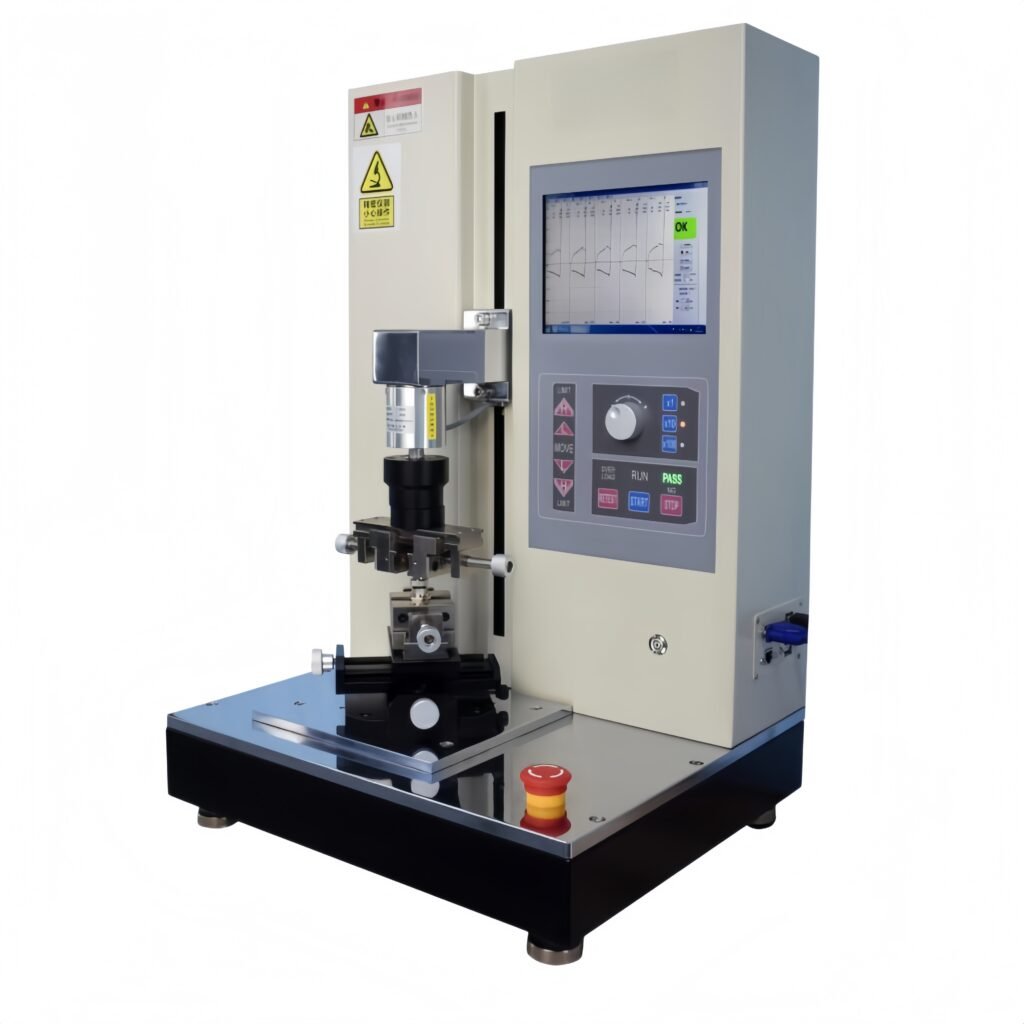

Every production lot is verified through strict mechanical quality gates. We utilize digital micrometers, optical comparators, and dedicated spring-load testers to ensure precise retraction forces, perfect thread fitment, and accurate pin diameters.
We process a wide range of industrial materials. Standard options include blackened carbon steel, stainless steel (SUS303, SUS304, SUS316), and zinc-plated alloy steel. We also support customized finishes like manganese phosphate coatings or nickel plating for advanced corrosion protection.
Yes, absolutely. As a professional source factory, we specialize in 100% custom hardware processing. You can upload your STEP, IGES, or PDF blueprints via our quote form, and our engineering team will perform a free DFM review for you.
We routinely manufacture standard metric sizes from M6 to M24 and imperial equivalents. For the critical locking pin diameter, our precision centerless grinding allowing us to achieve standard fit tolerances such as h7, g6, or any custom dimension down to ±0.005mm.
We are highly flexible. We welcome low-volume initial prototyping, custom trial runs, and high-volume mass production. Whether you need 50 pieces for specialized test fixtures or 10,000 pieces for standard commercial distribution, our factory is fully optimized to scale.
