Explore our manufacturing capabilities for complex, custom-engineered gears. Utilizing state-of-the-art 5-axis CNC milling, multi-tasking turning, and precision wire EDM, we transform intricate CAD designs into high-performance non-standard gear drives.

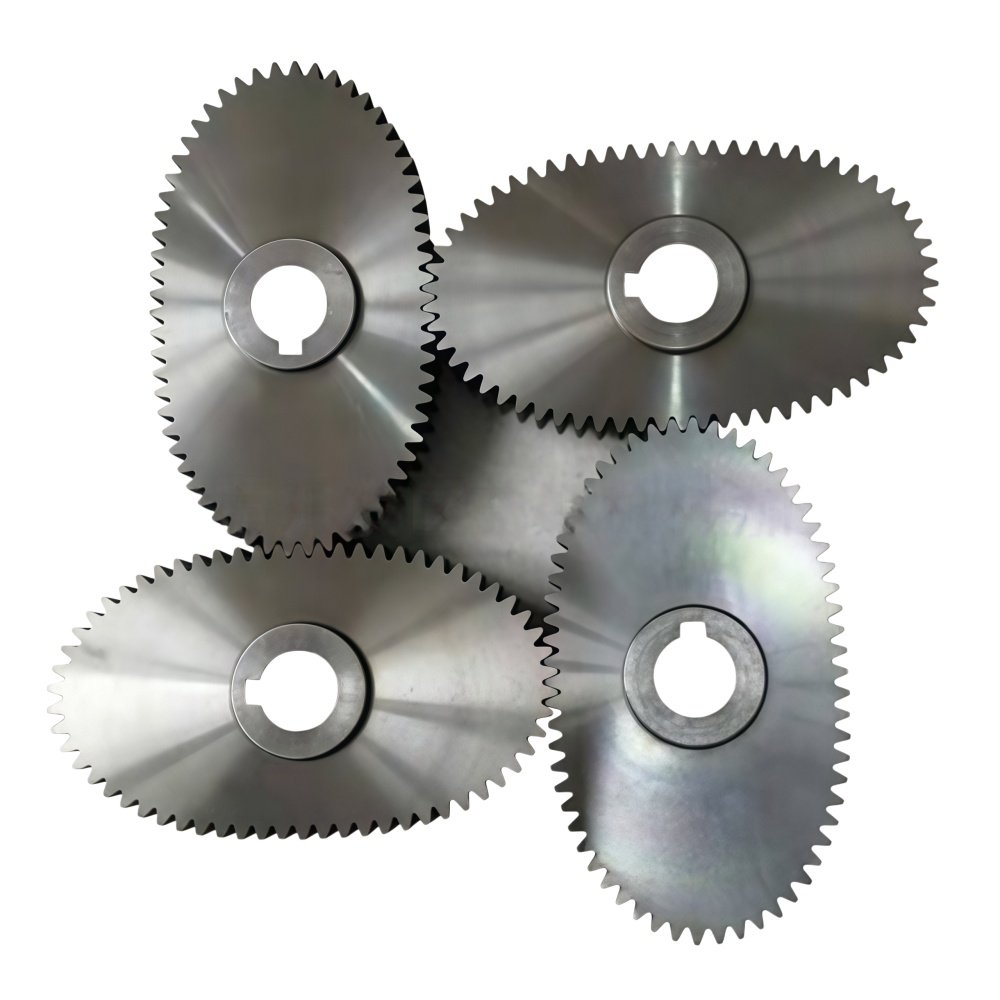

Non-Circular & Elliptical Gears
Engineered for variable speed transmission and non-uniform rotation. Machined with ultra-precise pitch contours to deliver smooth acceleration curves in automated packaging, textile, and specialized fluid metering pumps.

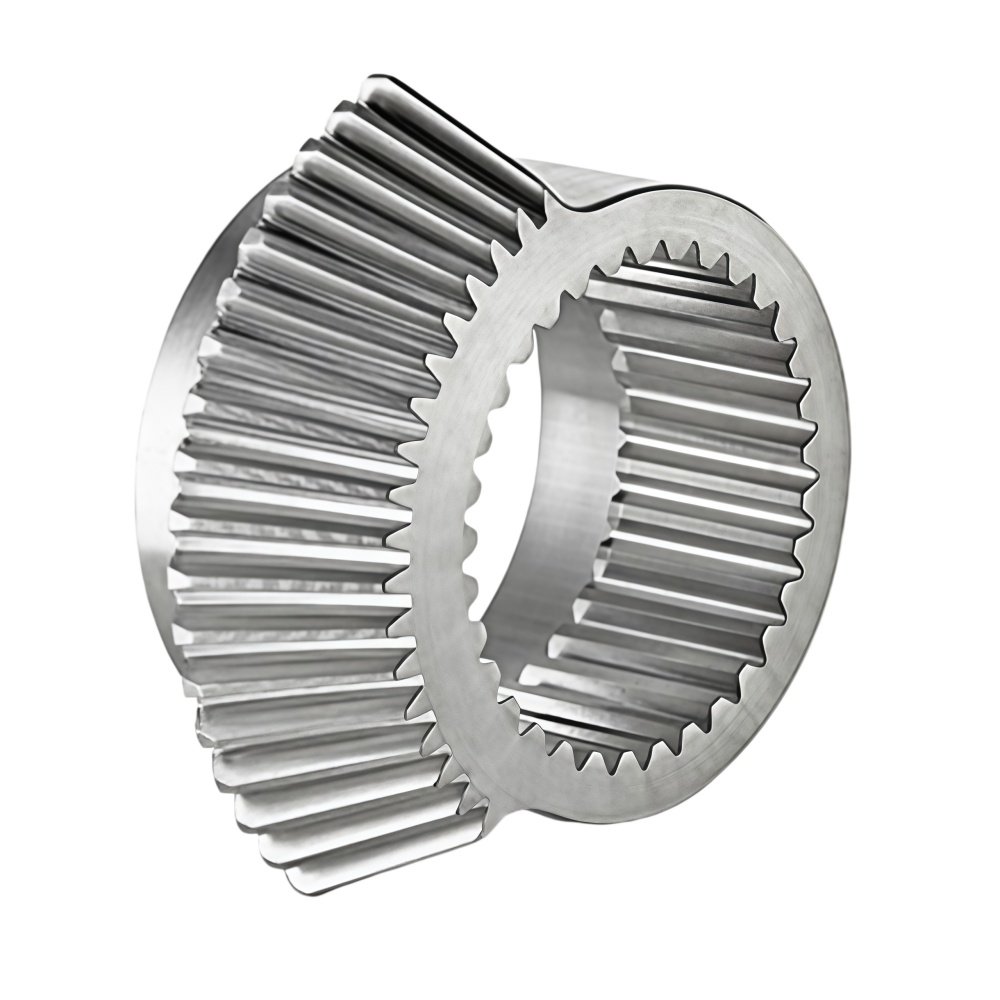

Precision Sector & Segmental Gears
Custom-designed partial gear rings engineered for oscillating drive mechanisms. Optimized for maximum tooth root strength in restricted angular rotation systems, such as medical actuators and steering mechanisms.

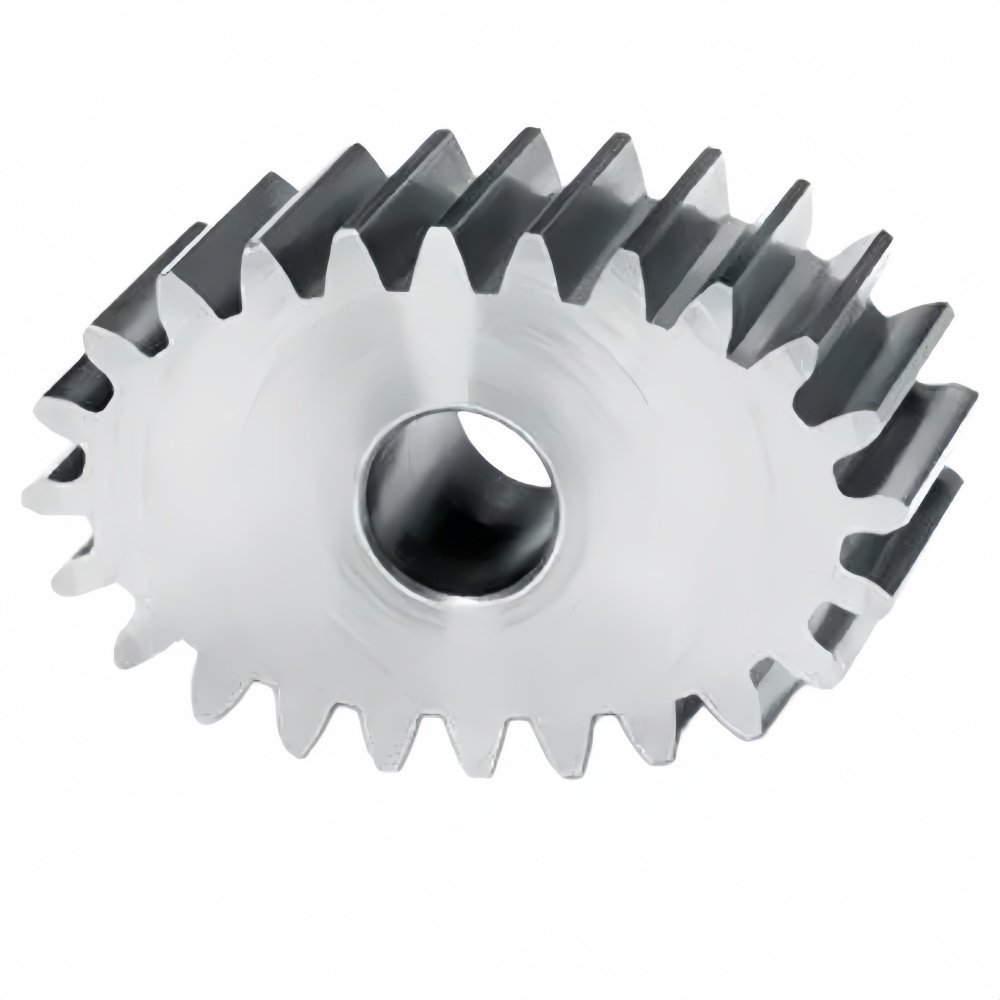

Asymmetrical & Custom Profile Gears
Feature engineered tooth angles tailored for unidirectionally loaded machinery. Reduces operating stress, lowers friction loss, and extends mechanical lifespan in demanding industrial equipment.

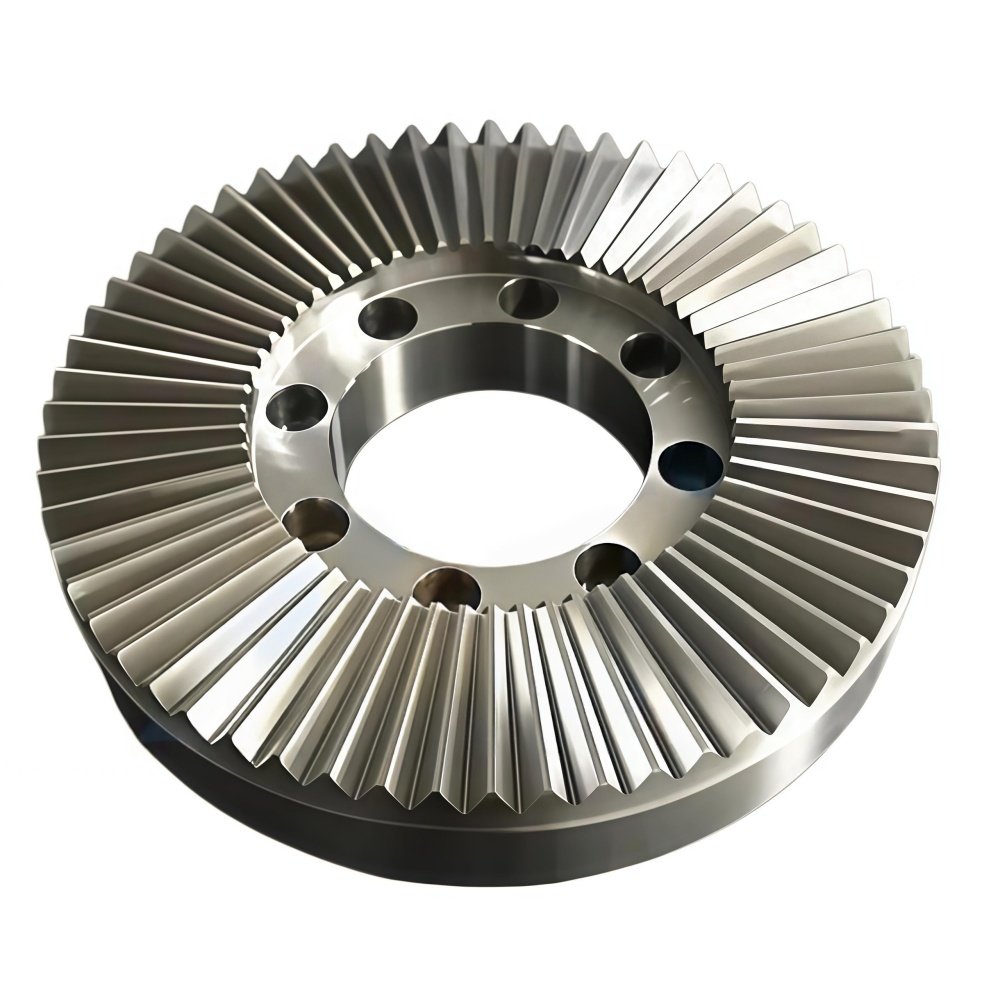

Precision CNC Face Gears
Machined with perpendicular tooth geometry to transmit power between intersecting or high-offset shafts. Provides compact, high-torque right-angle power transfer for aerospace drive systems and robotics.
Custom Rack & Shaped Pinion Sets
Precision-milled gear racks paired with custom-profile pinions for specialized linear movement. Engineered to maintain absolute positioning accuracy and smooth engagement in automated industrial gantries.
Custom Industrial Gearboxes & Reducers
High-precision enclosed gear systems engineered for efficient speed reduction, high torque transmission, and minimal backlash. Essential for heavy machinery, industrial automation, and power transmission systems.

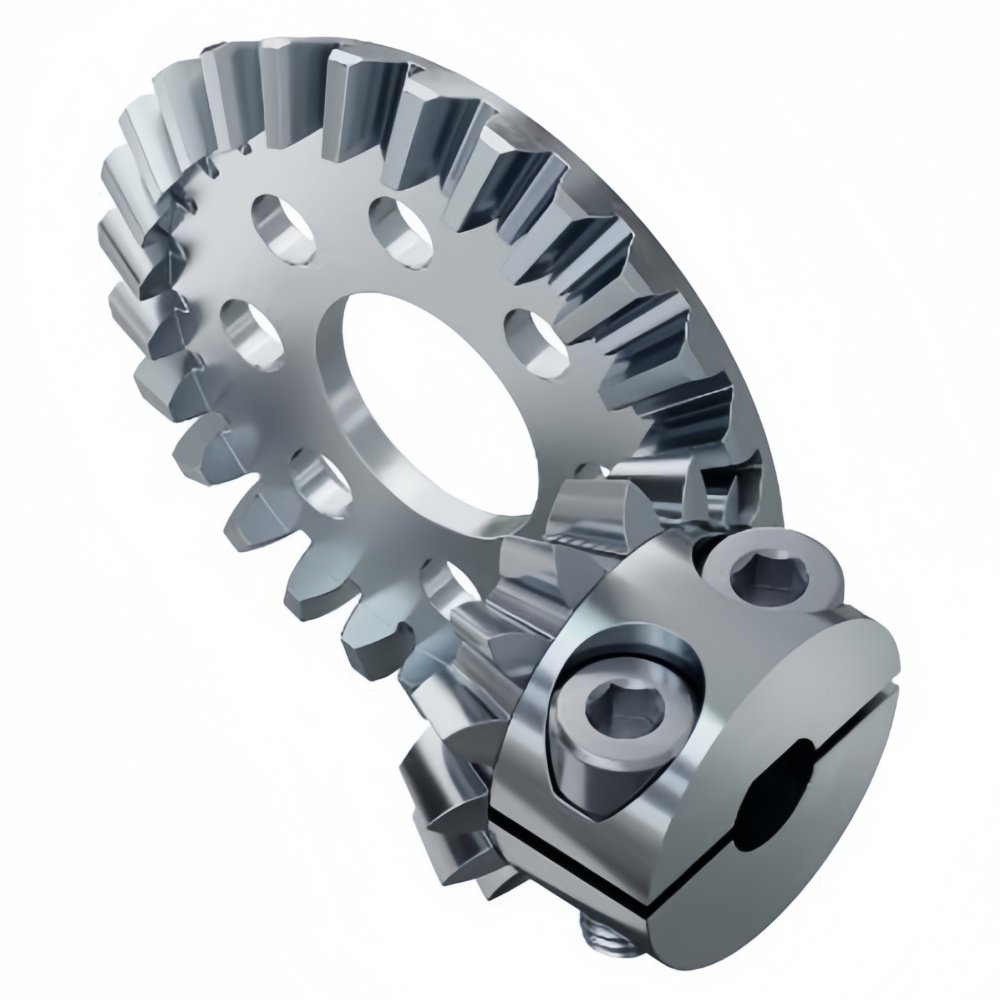

Non-Standard Conical Bevel Gears
Custom 3D-milled angular bevel gears designed for non-90-degree shaft intersections or complex offset spatial angles. Engineered for extreme torque transfer in specialized heavy machinery.

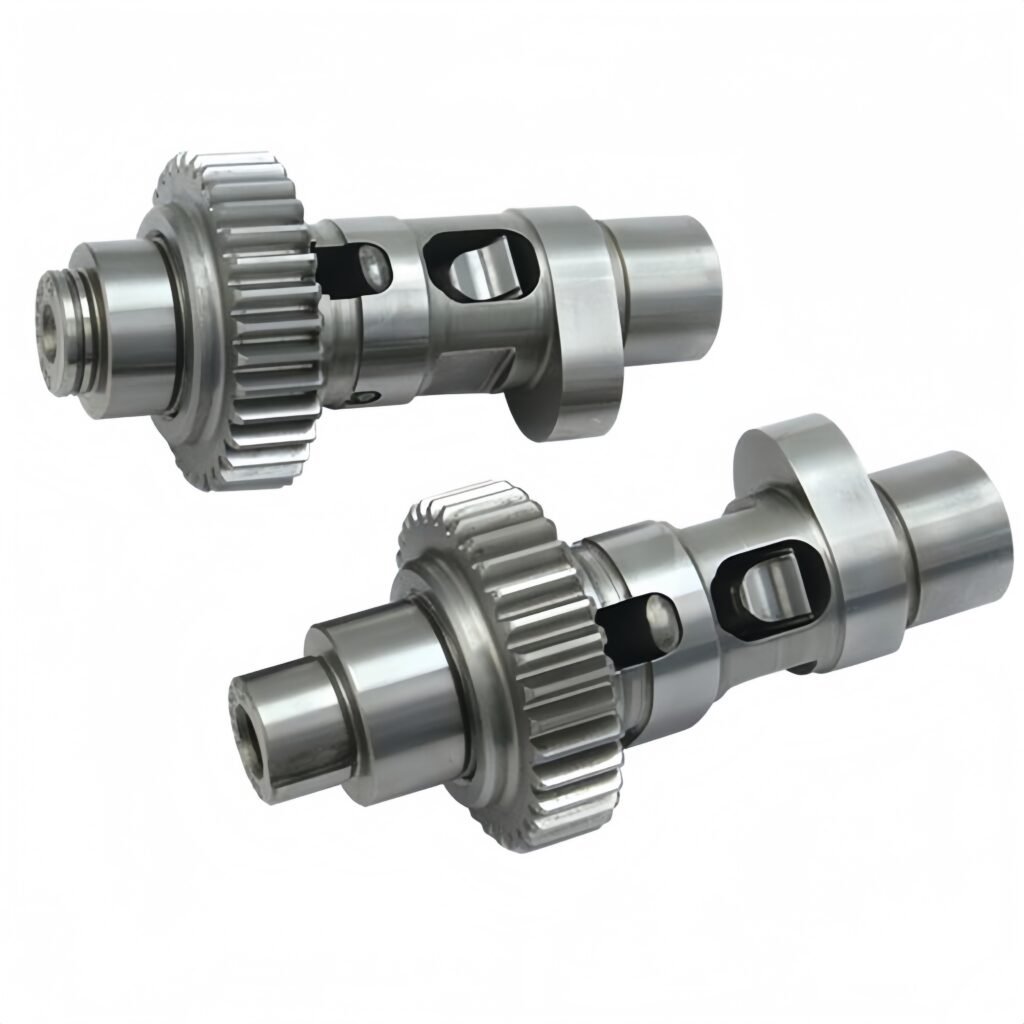

Integrated Gear & Cam Shaft Assemblies
Complex unified components combining non-standard gear teeth and cam lobes onto a single shaft. Machined in one setup on multi-axis CNC centers to guarantee absolute concentricity and timing precision.
Our high-precision manufacturing workshop is equipped with advanced 5-axis CNC machining centers, multi-axis turning-milling centers, slow-feed wire EDM, and dedicated 3D gear scanning instruments to tackle high-complexity geometry with total confidence.
Advanced 5-Axis CNC Machining
Equipped with multi-axis CNC centers and wire EDM to process complex non-circular, asymmetrical, and special-shaped gears with extreme precision.
All-Around Material Options
As an all-around custom hardware manufacturer, we process all series of aluminum for all industries, plus stainless steel, brass, and plastics.
Comprehensive CMM Inspection
Every non-standard gear undergoes 3D profile scanning, CMM testing, and microscopic surface audits to ensure zero-defect quality before dispatch.
Global B2B Logistics Export
Streamlined production and export-ready packaging (anti-rust coating with reinforced wooden crates) guarantee rapid turnaround and safe global delivery.
Yes. Specializing in custom hardware manufacturing, we regularly produce non-standard gears, elliptical gears, sector gears, and unique tooth geometries based directly on your 3D CAD models (STEP/IGES) or physical samples.
As an all-around custom hardware manufacturer, we process a complete range of industrial materials. This includes all series of aluminum (suitable across all industries), stainless steel (304, 316L, 17-4PH), alloy steels (4140, 8620), brass, bronze, titanium, and high-performance engineering plastics (PEEK, POM).
We utilize multi-axis 5-axis CNC milling centers, multi-tasking turning-milling lathes, and high-precision slow-feed wire EDM. This allows us to cut any complex 3D surface, non-circular pitch curve, or non-standard angle that conventional gear hobbers cannot process.
Non-standard gears are verified using advanced Coordinate Measuring Machines (CMM) and high-resolution 3D optical profile scanners. We generate full 3D point-cloud comparison reports against your original CAD file to guarantee complete geometric compliance.
If you have any design files that need to be sent, please email them to info@xml-cnc.com
