Precision Laser Cutting Service for Complex Geometries
High-speed metal laser cutting with exceptional accuracy. Utilizing state-of-the-art metal laser cutting equipment, XML Tech delivers clean edges, tight tolerances, and fast turnaround times. From rapid prototyping with laser cutting steel to high-volume laser cutting of metal sheets, we cover all your custom sheet metal needs.
Certifications : ISO 9001:2015 | AS9100D | ITAR Registered
Why Partner with XML Tech for Metal Laser Cutting?
- Advanced Fiber Laser Technology: We utilize state-of-the-art fiber lasers to cut through both standard and highly reflective metals (like copper and brass) with unmatched speed and precision.
- Burr-Free & Clean Edges: Our optimized cutting parameters ensure smooth, slag-free edges, significantly reducing the need for costly secondary deburring processes.
- Zero Tooling Costs: Unlike traditional stamping, laser cutting requires no physical tooling. Iterate your designs freely and bring your products to market faster.
- Maximized Material Yield: By employing advanced nesting software, we optimize sheet utilization, minimizing scrap and lowering your overall part cost.
Laser Cutting Capabilities & Specifications
| Category | Specification / Feature | Technical Details & Parameters |
| Machine Capabilities | Technology | High-Power CNC Fiber Laser Cutting (Advanced solid-state laser) |
| Max Working Area (Flatbed) | 1500 mm x 3000 mm (5′ x 10′) standard format | |
| Rotary / Tube Cutting | Support for round, square, and rectangular tubes (Optional capability) | |
| Assist Gases | Nitrogen (N2) for oxidation-free edges, Oxygen (O2) for thick steel, Air for cost-efficiency | |
| Material Thickness Limits | Carbon / Mild Steel | Up to 20 mm (Oxygen assisted for clean penetration) |
| Stainless Steel | Up to 15 mm (Nitrogen assisted for bright, dross-free edges) | |
| Aluminum Alloys | Up to 12 mm (High-speed processing) | |
| Copper & Brass | Up to 8 mm (Advanced reflection-handling for non-ferrous metals) | |
| Precision & Quality | Standard Tolerance | ±0.05 mm to ±0.1 mm (Depending on material grade and thickness) |
| Kerf Width | Extremely narrow (~0.1 mm) allowing for intricate geometric details | |
| Heat Affected Zone (HAZ) | Minimized due to high cutting speeds, preventing material warping | |
| Edge Quality | Burr-free, dross-free, and clean finishes requiring zero or minimal deburring | |
| Engineering & Operations | Processing Capabilities | 2D Flat Profiling, Hole Piercing, Etching/Part Marking, Intricate Cutouts |
| Supported File Formats | 2D: .DXF, .DWG 3D: .STEP, .STP, .IGES, .SLDPRT | |
| Automation Integration | Dual-pallet shuttle tables for continuous, high-volume mass production |

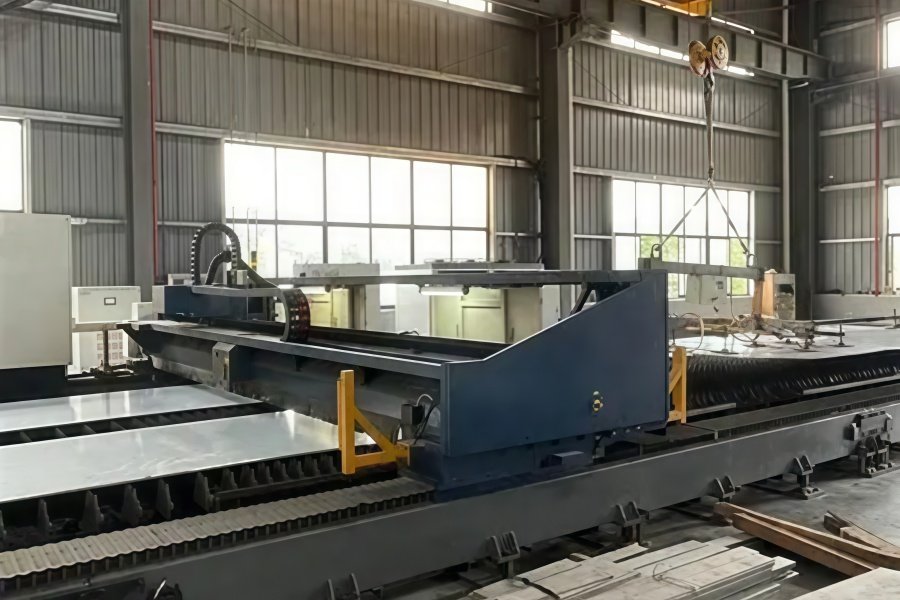

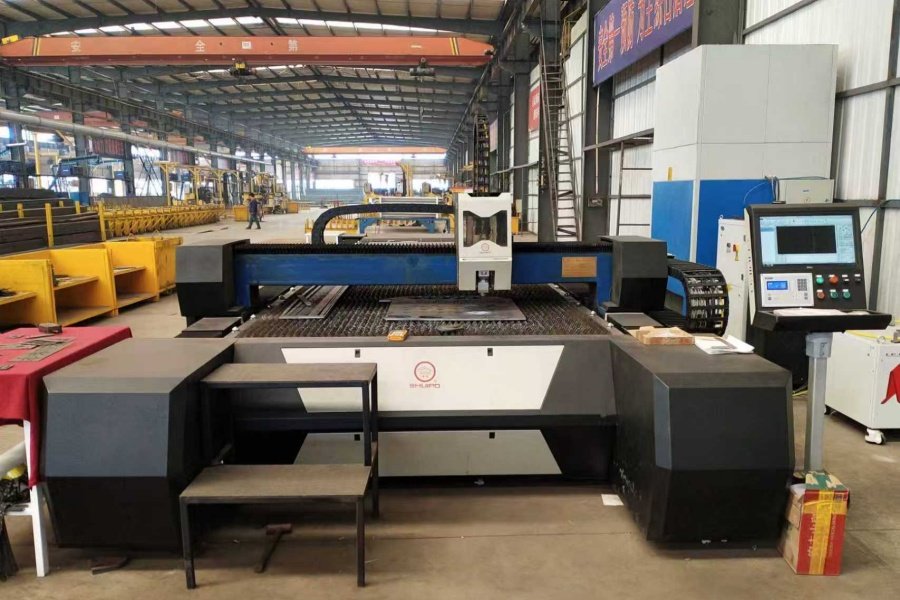

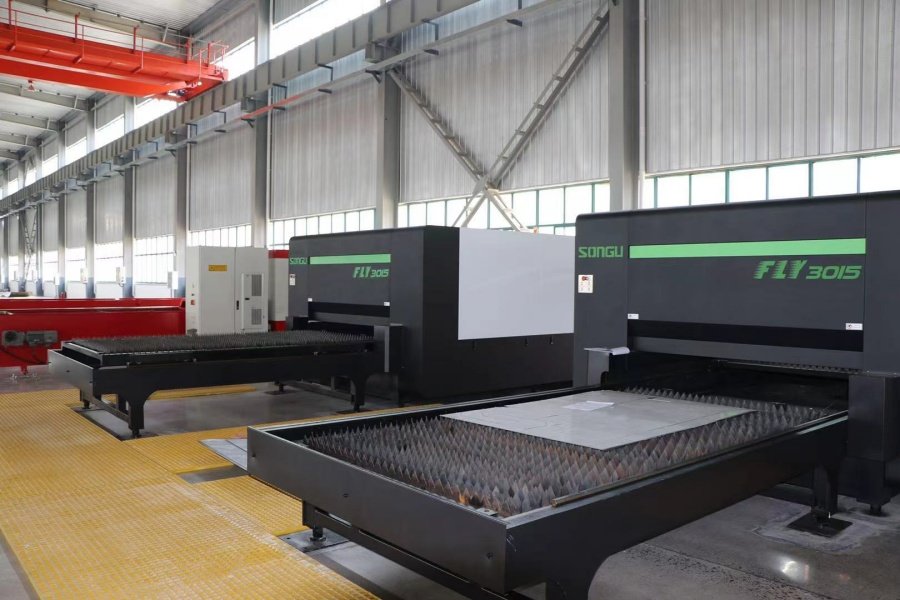

State-of-the-Art Laser Cutting Facility & Equipment
Equipped with industrial-grade, high-power fiber laser cutting systems, XML Tech delivers microscopic accuracy across a diverse range of industrial metals. Our advanced equipment effortlessly slices through varying thicknesses of carbon steel, stainless steel, aerospace aluminum, and brass. By maintaining exceptionally tight tolerances and producing smooth, burr-free edges, we minimize the thermal Heat-Affected Zone (HAZ) and significantly reduce the need for secondary grinding. From intricate custom profiles to heavy-duty plates, we ensure every cut strictly adheres to your CAD specifications.
Our laser cutting facility is engineered for maximum efficiency, capable of handling everything from rapid prototyping to high-volume, continuous production runs. But at XML Tech, cutting is just the beginning. As a comprehensive hardware manufacturer, we don’t operate in isolation. These precisely cut flat patterns flow directly into our in-house CNC machining, precision bending, and advanced welding workflows. This fully integrated approach eliminates supply chain bottlenecks, lowers overall costs, and guarantees perfectly mated components for your final assemblies.
Our Metal Laser Cutting Work
Explore our recent laser metal cutting projects. Through precision sheet metal cutting, we deliver clean, burr-free components across a wide range of metals, meeting the strict demands of global industries.
Ready to Cut Costs and Lead Times?
Upload your DXF, DWG, or 3D STEP files today. Our engineering team will review your project for free DFM analysis and provide a detailed quotation within 24 hours.
Laser Cutting FAQs
Yes. Our advanced fiber lasers safely and efficiently process reflective metals, including copper (up to 8mm) and brass, ensuring clean edges without damaging the equipment.
Our standard tolerance is generally between ±0.05 mm and ±0.1 mm, depending on the specific material grade and sheet thickness.
In most cases, no. We optimize cutting parameters and use assist gases (like Nitrogen for stainless steel) to deliver clean, burr-free, and dross-free edges ready for assembly.
Absolutely. XML Tech is a comprehensive hardware manufacturer. We offer turnkey services including CNC bending, welding, hardware insertion, and surface finishing under one roof.
