Discover our comprehensive portfolio of high-precision machined shafts. Utilizing leading multi-axis CNC turning-milling centers and Swiss-type lathes, we ensure rigid dimensional control for high-RPM and smooth torque transmission.

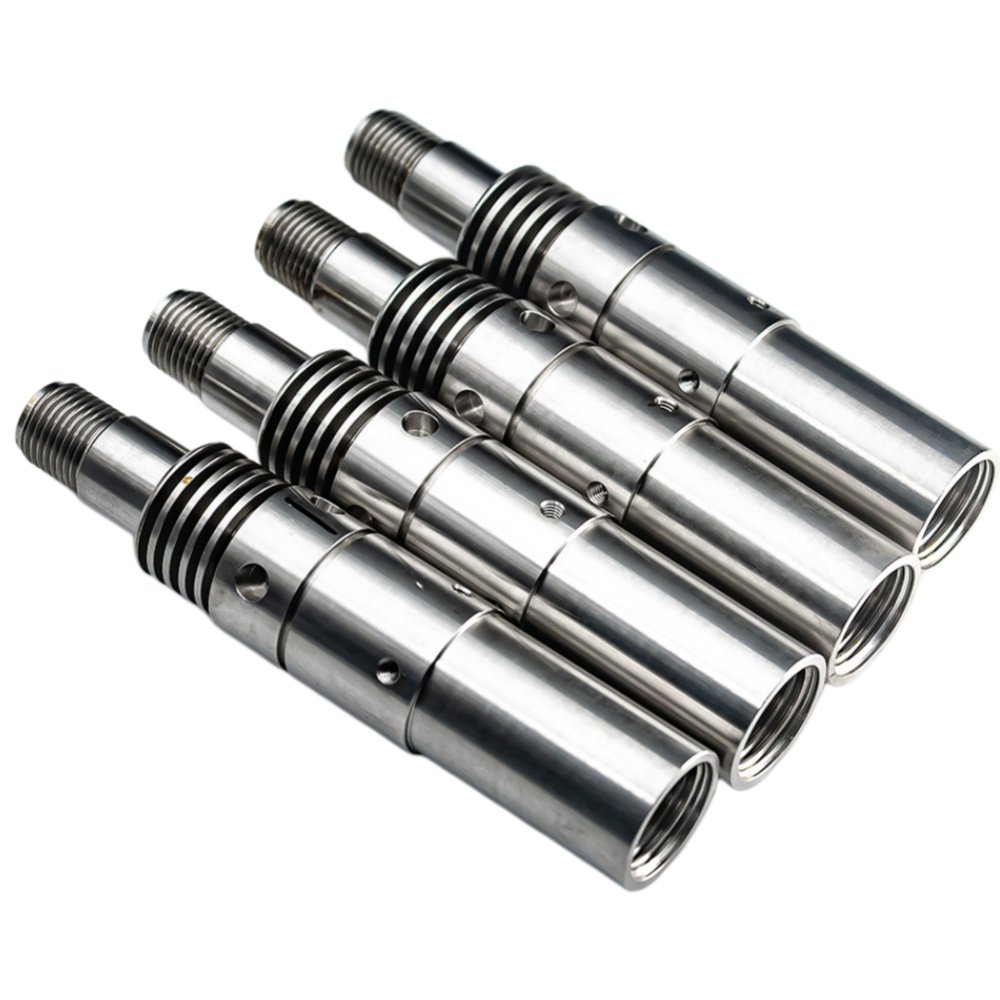

High-Precision Multi-Stepped Machined Shafts
Engineered with meticulous multi-level diameters and precise shoulderfillets, our stepped shafts are optimized for gearbox inputs, transmission outputs, andmotor spindles. We strictly control the stepped runout and perpendicularity within integrated 5-axis CNC grinding centers to eliminate stressconcentrations.

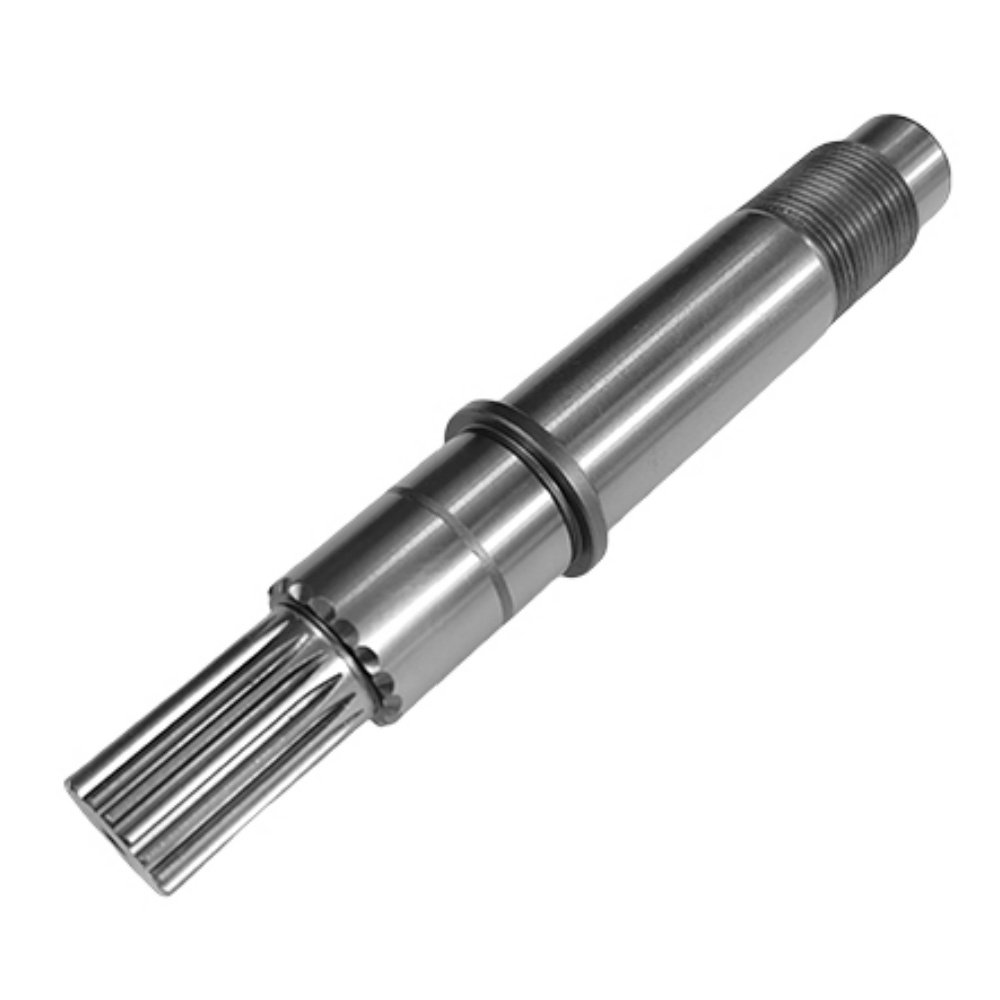

CNC Machined Involute & Parallel Spline Shafts
Our custom spline shafts conform perfectly to international standards including DIN 5480 and ANSI B92.1 profiles. Machined in a single setup using advanced turning-milling techniques or premium hobbing processes, we guarantee extreme coaxiality between the spline teeth and the main bearing journal diameters.

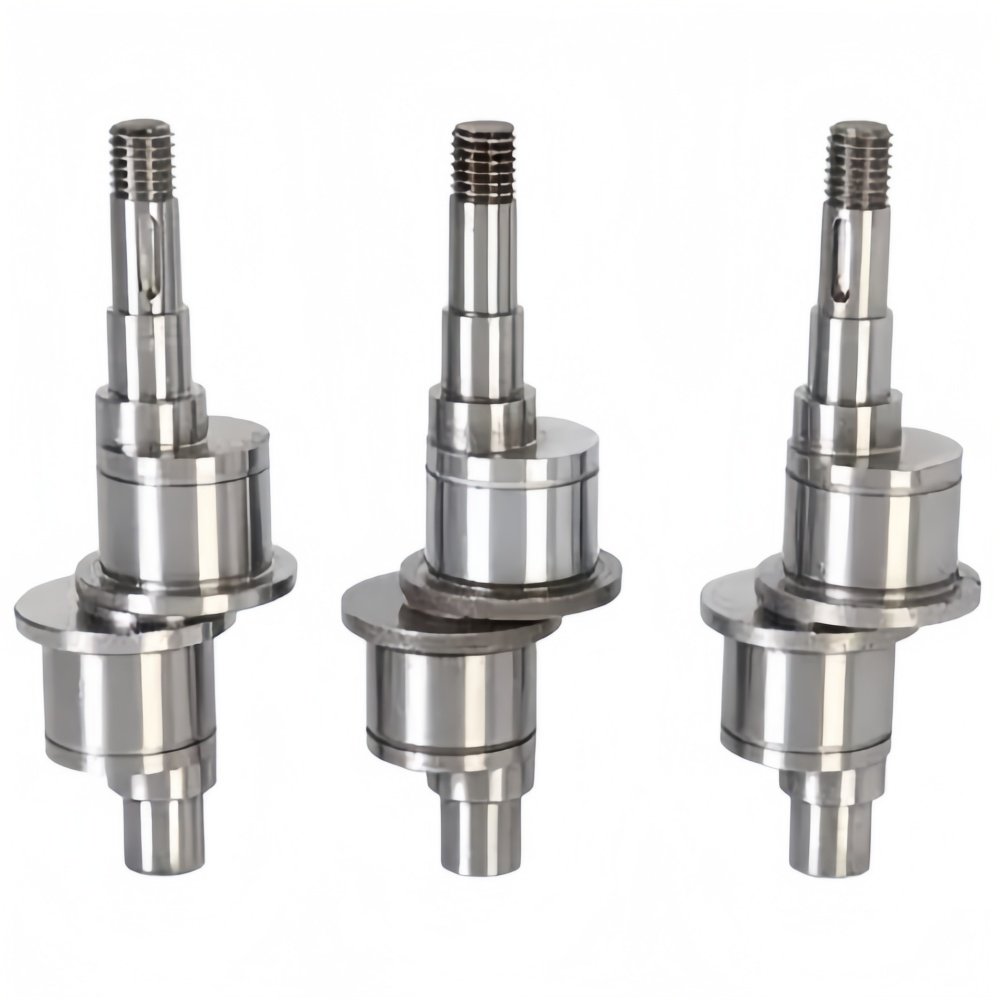

Precision Machined Camshafts & Eccentric Shafts
Delivering flawless phase relationships between eccentric journals and lobes, these shafts are paramount for high-pressure pumps, reciprocating compressors, and medical device actuators. Every eccentric throw rate is strictly verified using our automated Coordinate Measuring Machines (CMM) to ensure zero timing drift.

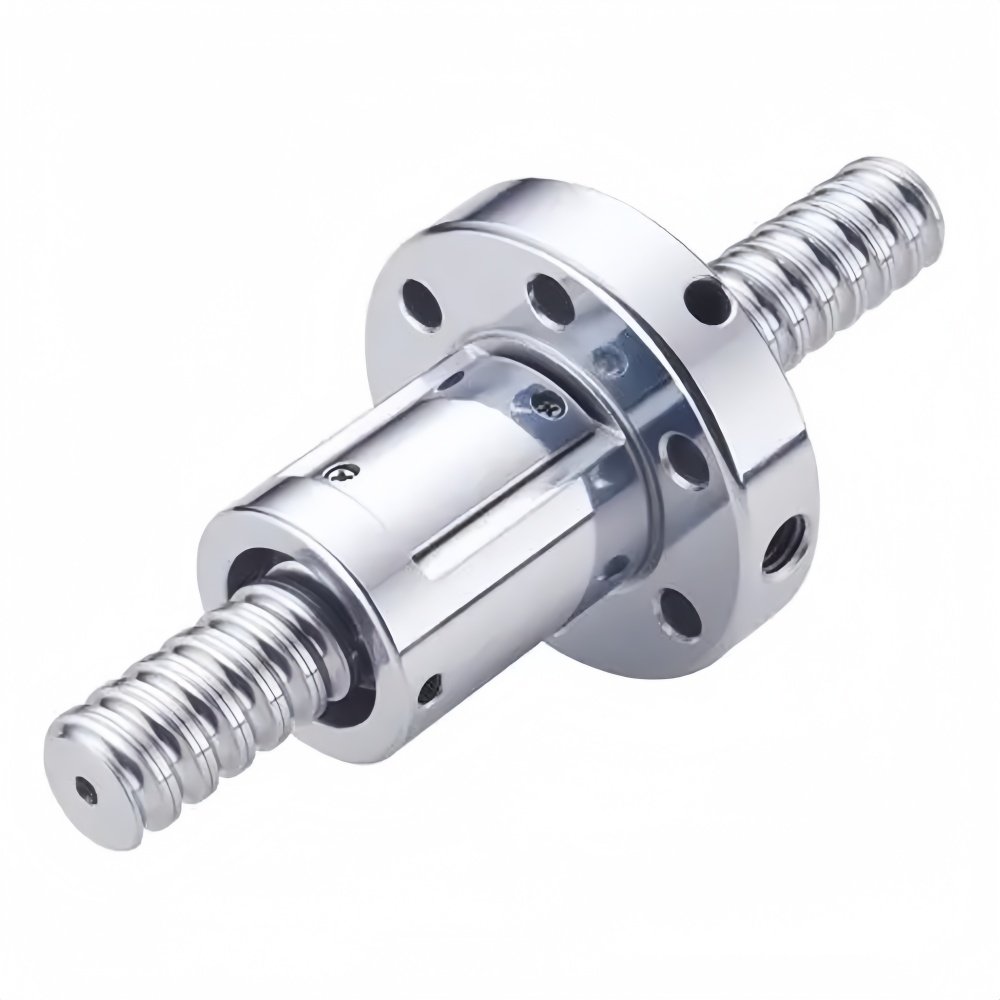

High-Accuracy Ball Screws & Lead Screw Shafts
Featuring precision-ground trapezoidal or gothic-arch helical threads, our screw shafts offer high lead accuracy and tight backlash control. Extensively integrated into linear actuators, CNC machine drives, and medical imaging systems where smooth linear motion conversion is critical.

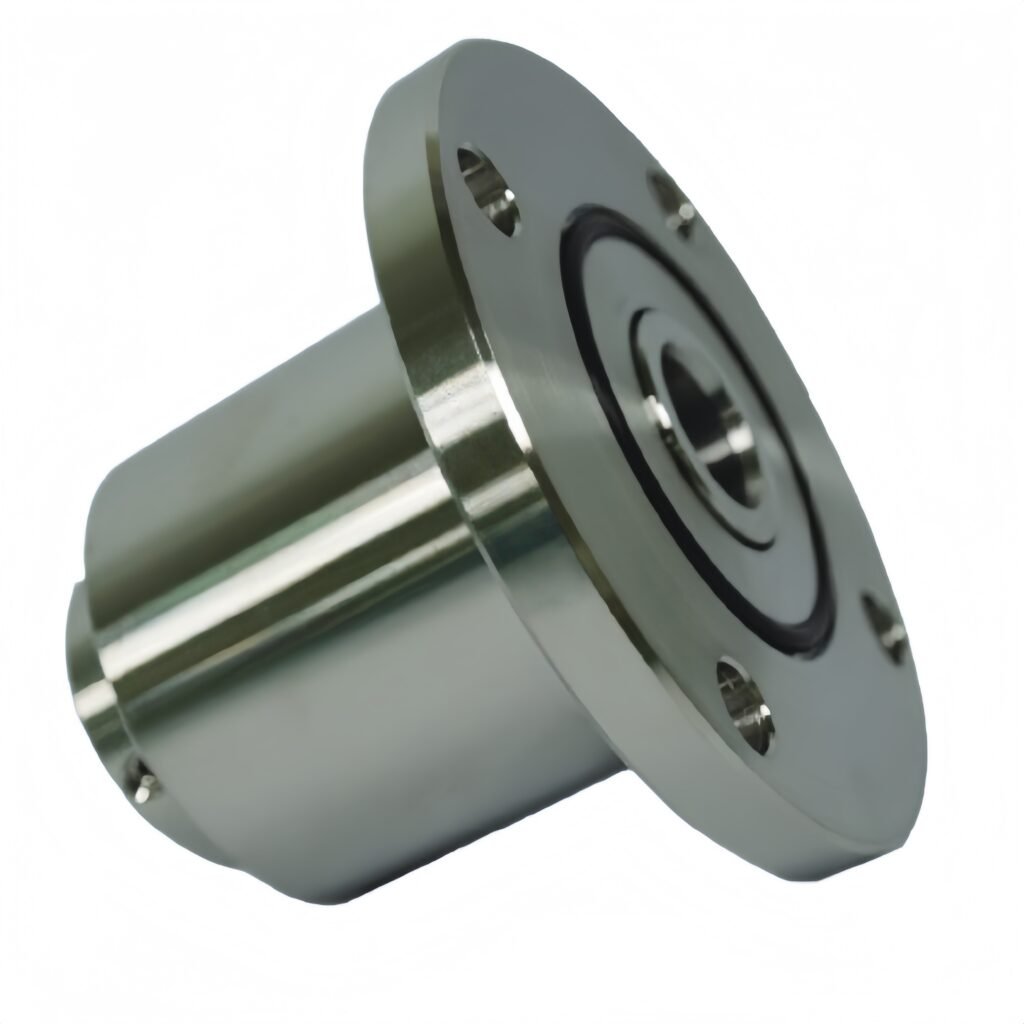

Lightweight Hollow Shafts With Precision Bores
Tailored for applications requiring the passage of fluid media, cooling lines, or electrical wiring. These hollow configurations are widely used in aerospace mechanisms and robotics. The inner-bore concentricity and outer-wall thickness uniformity are fully validated via deep-hole drilling technology and advanced ultrasonic testing.

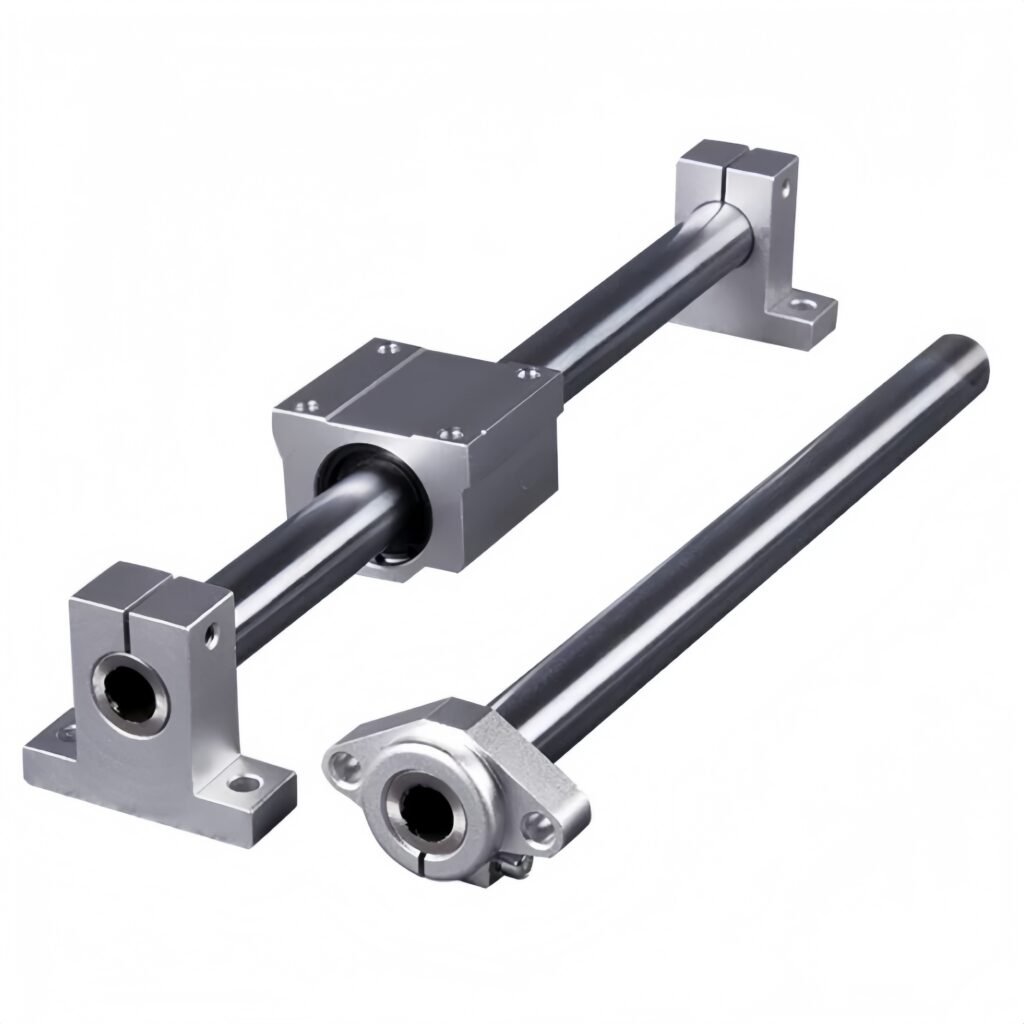

Complex Turning-Milling Multi-Functional Shafts
Our multi-functional shafts seamlessly integrate complex keyways, cross-holes, slots, and specialized external threads into a single workpiece. Completed entirely within a single-clamp operation on our turning-milling centers, this approach eliminates cumulative setup errors typical of traditional multi-stage workshops.

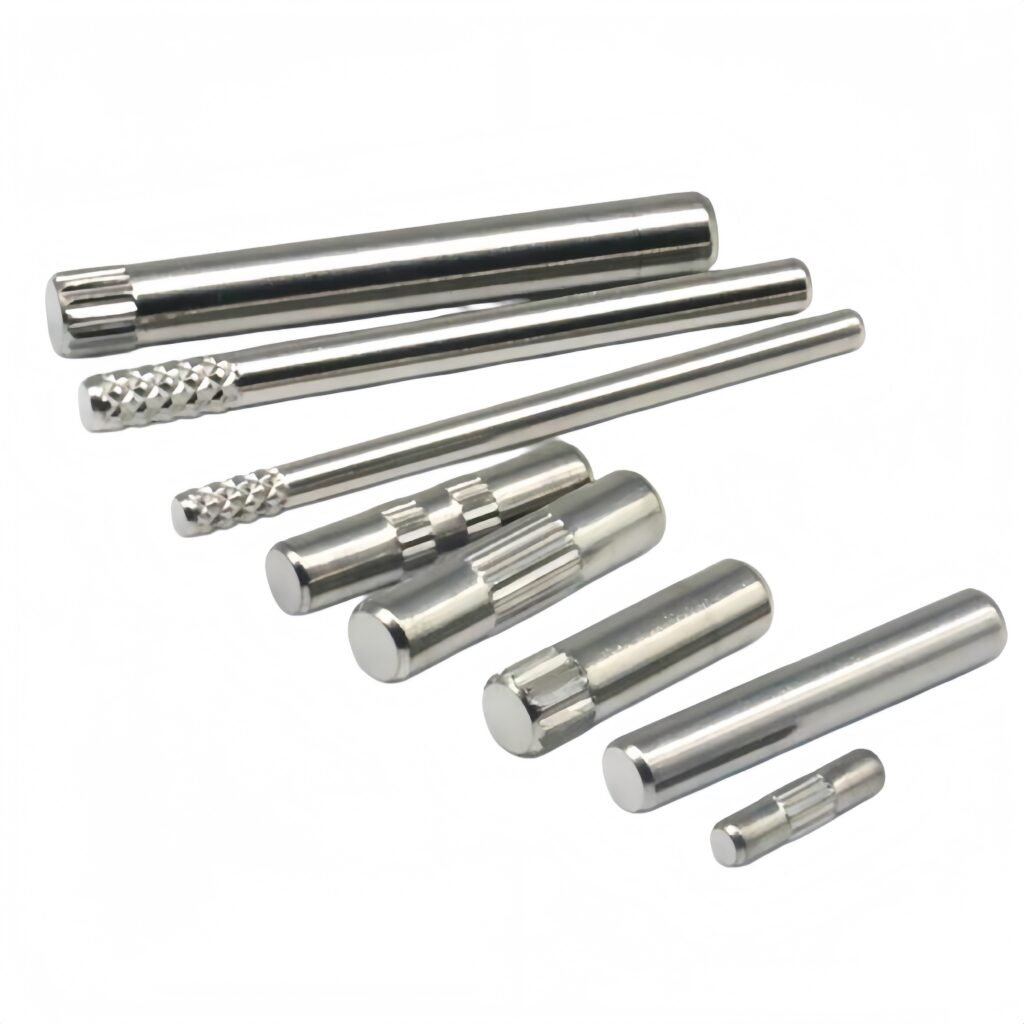

Swiss-Type Micro Shafts Down to 1mm Diameter
Specializing in ultra-fine component processing, our micro shafts are fabricated down to $1\text{ mm}$ diameters using specialized CITIZEN A16 Swiss-type lathes. Outfitted with high-rigidity guide bushings, these micro-axles are widely used in micro-gearbox drives, instrument pointers, and precision electronic contact probes.

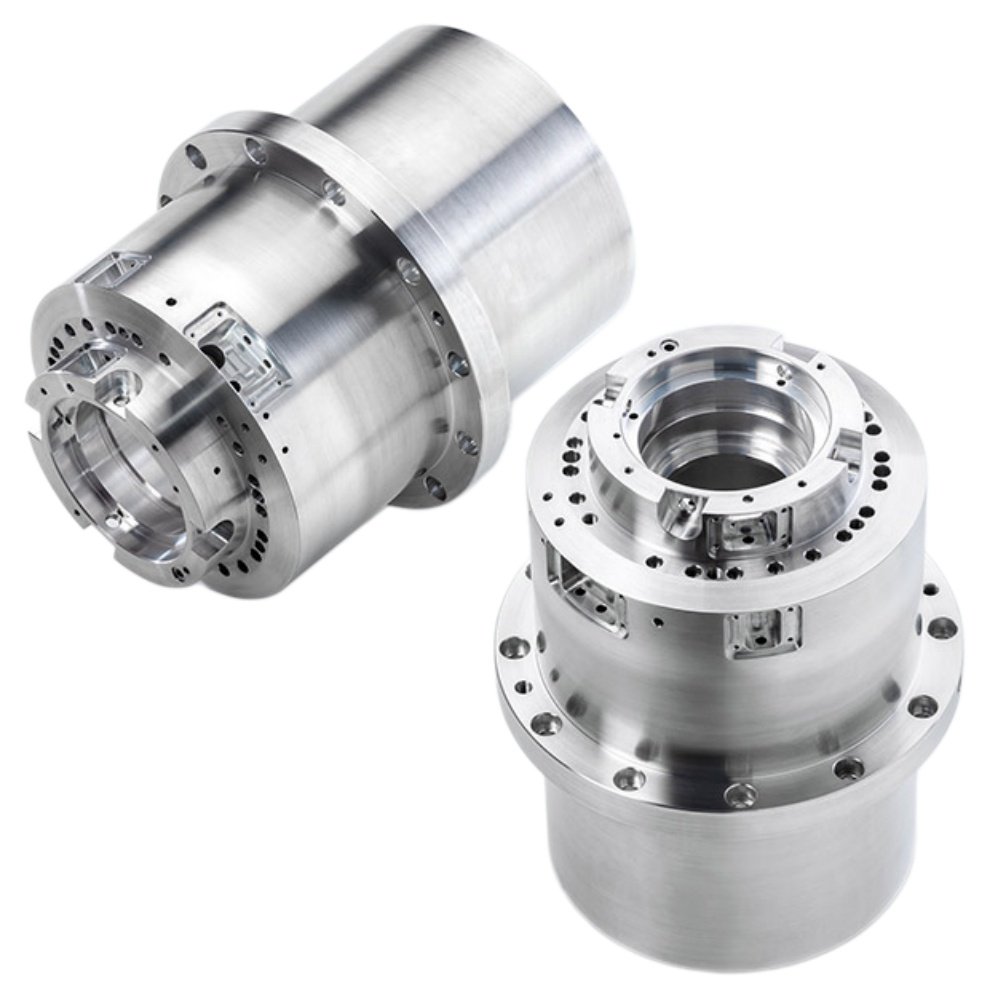

Turnkey Precision Machined Shaft Assemblies
We provide complete, ready-to-install shaft assemblies encompassing pre-fitted nuts, retaining rings, and precision ground spacers. Consolidating all sub-components from a single source ensures unified quality tracking, uniform dimensional matching, and significantly reduces your incoming inspection and line assembly times.
As a professional CNC precision shaft manufacturer, our factory features full sets of multi-axis CNC and Swiss lathe equipment. We complete custom spline shafts, camshafts and precision axles via in-house machining, with strict CMM dimension inspection to meet global OEM tolerance demands.
Advanced CNC Machining
Using premium tool steel, aerospace aluminum, and certified stainless steel, our high-speed multi-axis CNC machines and Swiss-type lathes execute precision turning and milling to generate flawless tool and shaft blanks with ultra-tight geometric tolerances.
Specialized Hardware Processing
Following rough machining, components undergo specialized operations including deep-hole drilling, thread grinding, custom gear hobbing, or localized induction hardening to achieve the exact mechanical strength and surface hardness required by your blueprints.

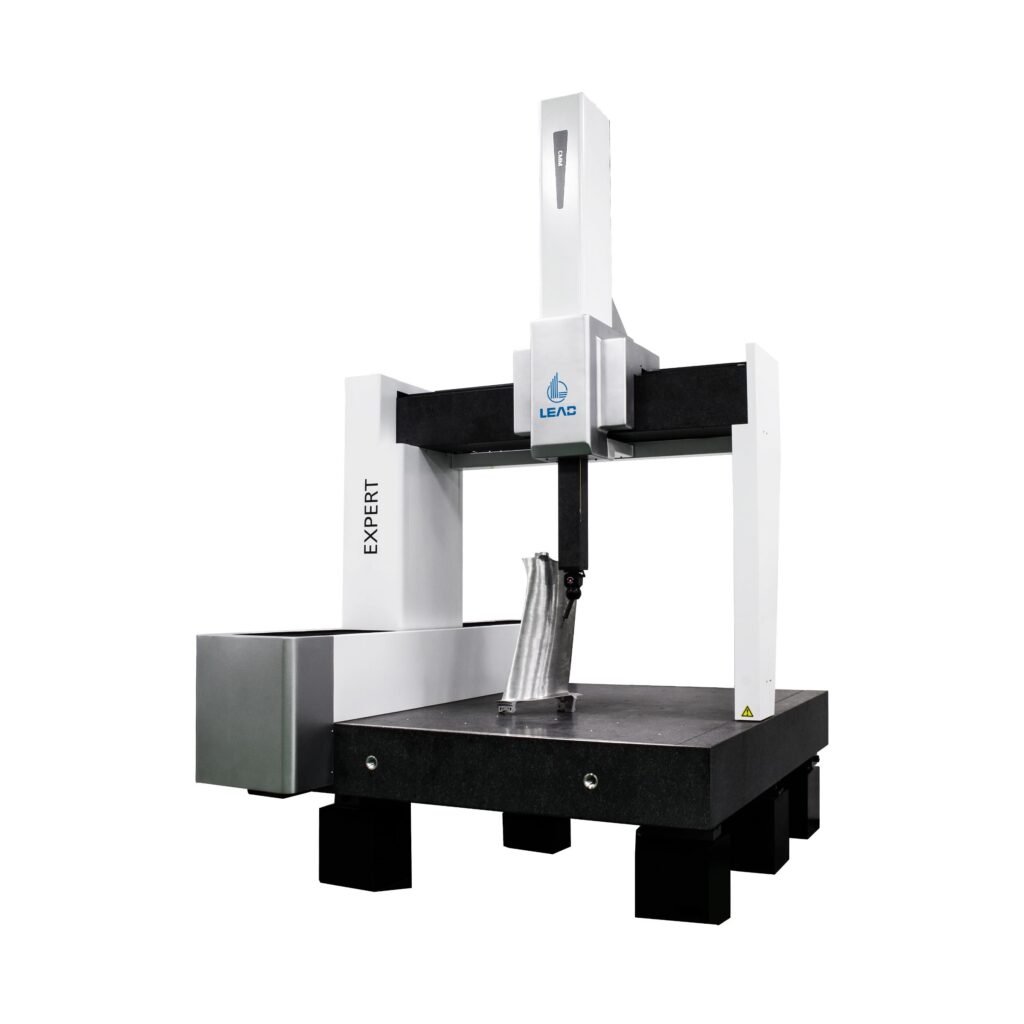

Comprehensive Quality Inspection
Quality is our absolute foundation. Every finished shaft is subjected to 100% rigorous validation protocols, utilizing Coordinate Measuring Machines (CMM), optical comparators, and dynamic balance aligners to verify micron-level circularity and guarantee zero structural runout.
Secure Packaging & Global Shipping
Every batch is carefully packed using shock-absorbing, tailored protective configurations to safeguard precision threads, micro diameters, and ground surfaces during transit, ensuring your international wholesale shipment arrives shelf-ready and on schedule.

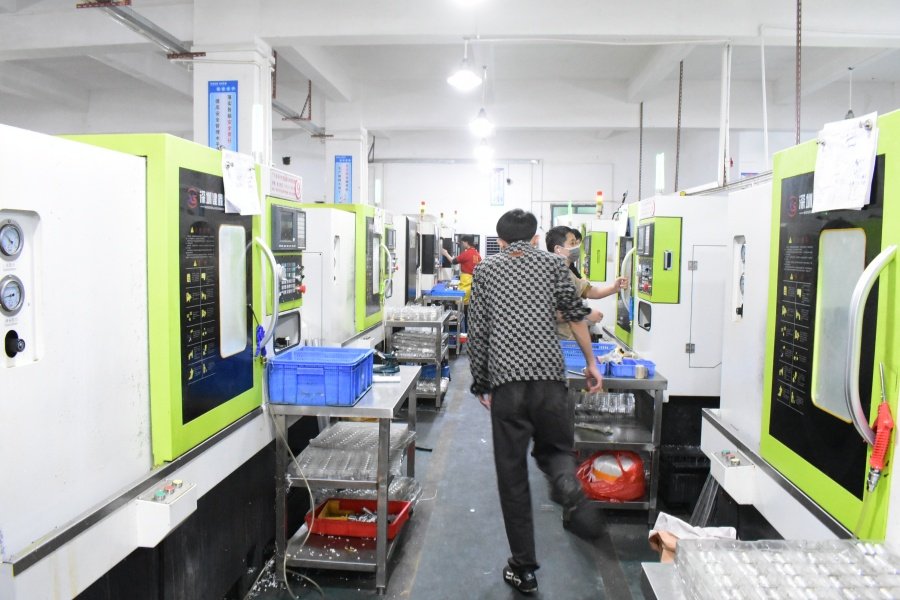

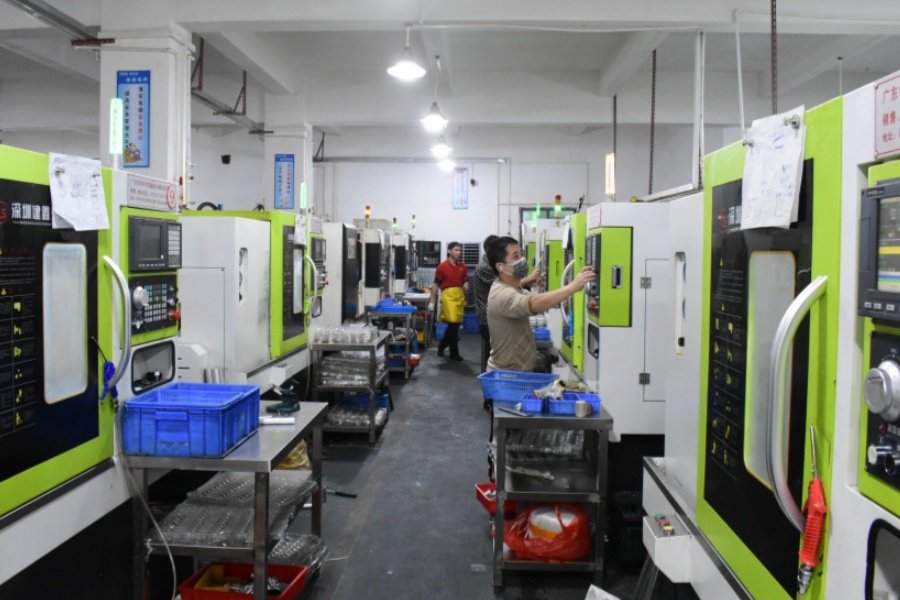

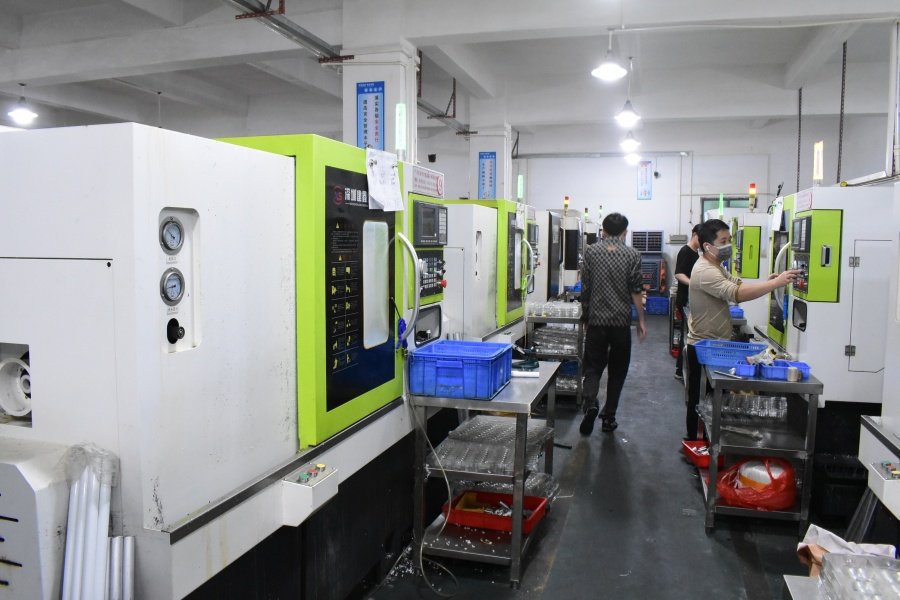

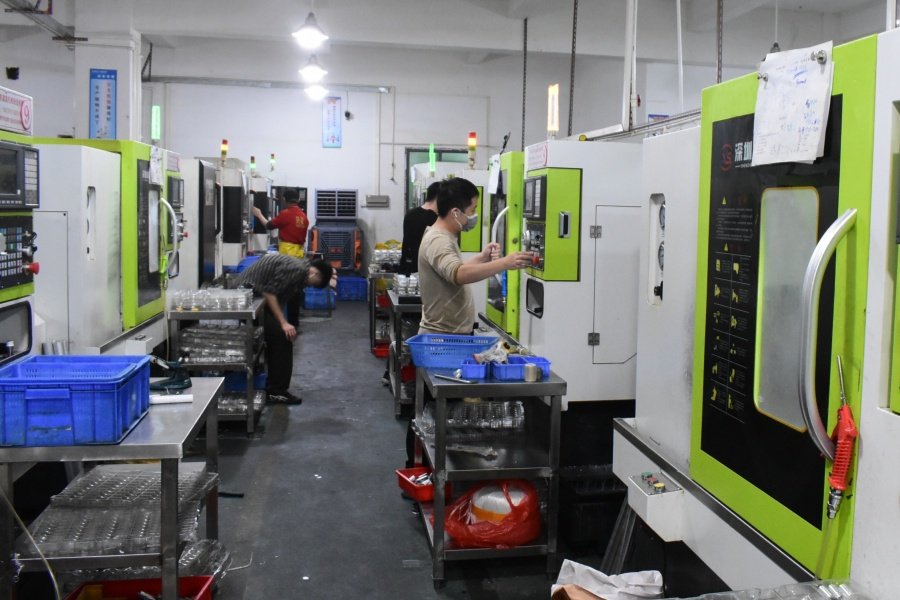

We are a direct, 100% hardware processing source factory backed by over 18 years of specialized engineering heritage. We own and operate advanced multi-axis CNC milling centers, precision turning lathes, and specialized CITIZEN Swiss-type machining setups, allowing us to maintain complete control over quality and cost.
By utilizing our premium Swiss-type lathes and ultra-precise cylindrical grinding lines, we can hold linear dimensional tolerances within $\pm0.002\text{ mm}$ and control stepped runout or concentricity within $\pm0.003\text{ mm}$. All micro-tolerances are fully certified via CMM data sheets.
Yes, our flexible manufacturing supply chain is built to handle versatile order structures. We accept diverse technical drawings to provide rapid prototyping within days for line trials, and can scale up seamlessly to handle high-volume automated production runs.
Absolutely. For comprehensive branding localization, we provide turnkey customization services including personalized laser-etched part numbers or logos directly onto the metal shanks, along with custom protective tubes, cases, or branded color boxes according to your exact criteria.
If you have any design files that need to be sent, please email them to info@xml-cnc.com
