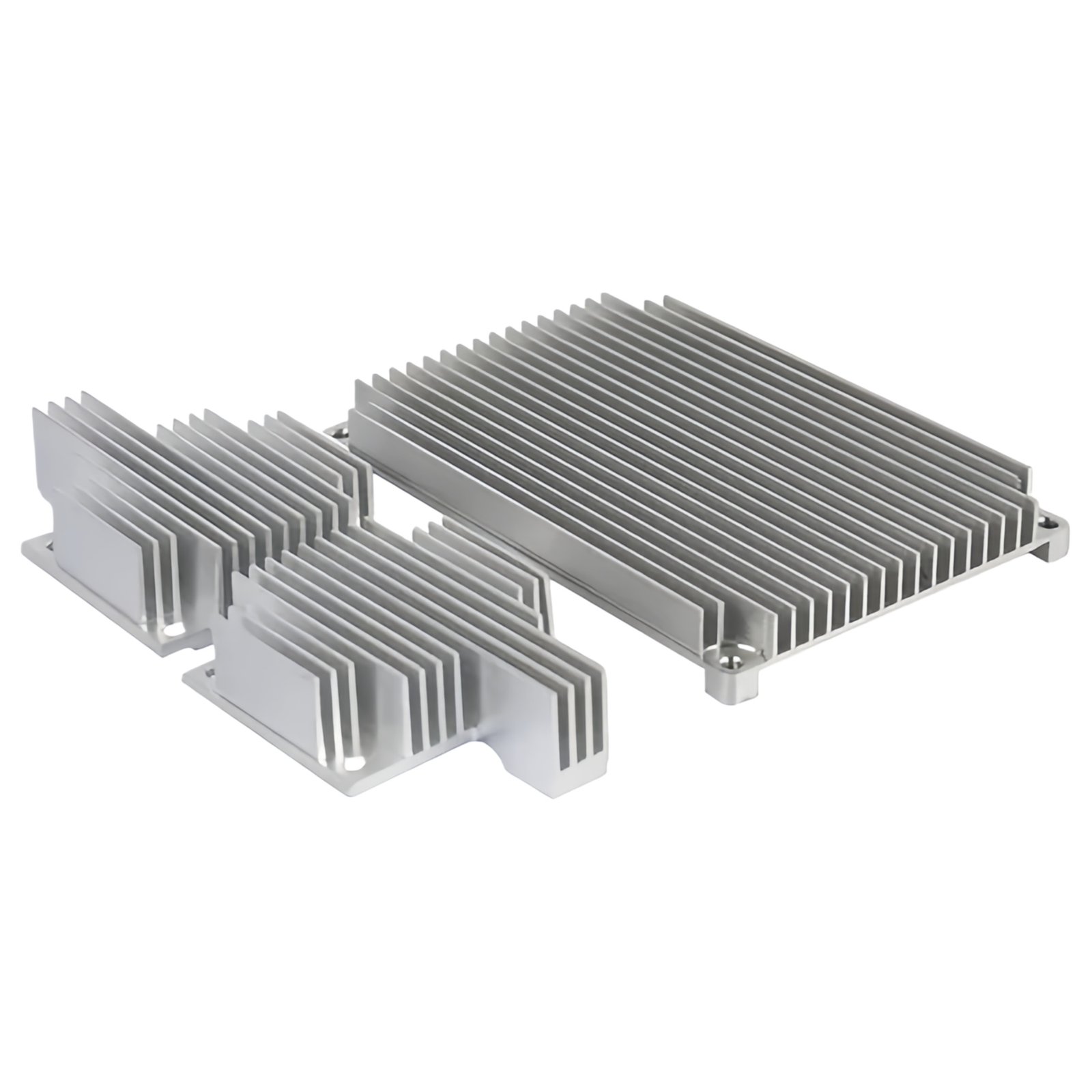

Multi-Axis CNC Milled Custom Heat Sinks

Applications & Functions

Our multi-axis CNC milled custom heat sinks (high-precision irregular thermal management assemblies) are engineered specifically to overcome severe space constraints, complex internal geometric layouts, and multi-component thermal dissipation requirements. Precision-milled directly from solid high-conductivity metal blocks via multi-axis CNC technology, these heat sinks feature integrated stepped contact pedestals, staggered fin arrays, and built-in mounting flanges. They allow a single structural heat sink to make simultaneous flat contact with multiple electronic components at varying heights, efficiently drawing heat away and ensuring optimal system reliability in advanced electronics.

They are extensively utilized across various high-density electronic, aerospace, and industrial sectors:

• Aerospace & Military Avionics: Serves as high-reliability thermal enclosures and internal heat spreaders for flight control computers, radar transceivers, and rugged satellite electronics.

• Automotive Control Units (ECUs) & Autonomous Driving: Ideal for cooling multi-chip autonomous driving compute boards, lidar processors, and electric vehicle powertrain controllers.

• Telecommunications & High-Speed Optical Systems: Functions as high-efficiency thermal spreaders for 5G micro base stations, optical transceivers, and dense network switches.

• Medical Equipment & Precision Instrumentation: Highly suited for surgical laser systems, diagnostic imaging electronics, and laboratory analytical equipment requiring zero-vibration, high-precision thermal control.

Outstanding Product Features

• Multi-Axis Precision Milling Flexibility: Executed with simultaneous multi-axis toolpaths to form complex 3D contours, multi-tiered contact bosses, mounting pockets, and custom outer enclosure features from a single metal block.

• Multi-Height Pedestal Contact Design: Engineered to simultaneously bridge thermal interface gaps across chips, transistors, and inductors situated at different PCB surface elevations, minimizing thermal resistance.

• Seamless Billet Structural Integrity: Milled entirely from solid forged 6061-T6/6063 aluminum or C1100 copper stock, offering 100% material density, zero casting voids, and exceptional thermal conductivity.

• Micron-Level Surface Flatness: Achieves ultra-flat contact pedestal tolerances (+/-0.005 mm) and low surface roughness, ensuring seamless thermal contact with delicate silicon dies and power modules.

• Custom Surface Anodizing & Protection: Available with clear or black anodizing, chromate conversion (SurTec 650), or electroless nickel plating to enhance thermal emissivity, insulation, and surface corrosion resistance.

Why Choose Us? 10+ Years CNC Machining Expertise

We operate as an all-around direct source manufacturer  with over 10 years of professional CNC machining and high-precision mechanical component manufacturing experience.

• Direct Factory Price Advantage: Source your custom CNC milled heat sinks, electronic thermal enclosures, and precision hardware directly from our production workshop to eliminate trading company markups and maximize your procurement margins.

• All-Around Hardware Fabrication Facility: As a comprehensive, all-around production facility, we process a diverse range of high-performance materials including iron, stainless steel, copper, bronze, titanium alloys, and aerospace-grade aluminum alloys to meet exact engineering specifications.

• Bespoke OEM/ODM Turnkey Customization: We machine custom heat sinks, electronic housings, structural brackets, and hardware fittings tailored precisely to your CAD/3D STEP models. You can specify complex fin layouts, multi-step contact pedestals, surface finishes, and localized laser logo markings.

• Advanced Multi-Axis CNC Milling Infrastructure: Our facility is equipped with state-of-the-art multi-axis CNC milling centers, precision high-speed spindles, automated tapping machinery, and profiling tools capable of maintaining tight dimensional tolerances down to +/-0.005 mm.

• Rigorous Quality & CMM Inspection: Every single production batch undergoes severe CMM 3D dimensional audits, optical surface flatness validation, thread gage checks, and coating thickness tests to guarantee out-of-the-box operational reliability.
