Stainless Steel Hydradermabrasion Machining
We assisted a South Korean beauty industry client in producing a high-precision stainless steel cross mesh tip used as a handpiece accessory for aqua peel and hydradermabrasion devices. Through high-precision Swiss-type CNC machining and a customized dual-layer diamond electroplating process, we achieved a 99% quality yield rate within a strict delivery timeframe. We deliver highly standardized, easy-to-clean, and exceptionally skin-friendly mikrodermabrazyon accessories as your dedicated precision hardware manufacturing partner.
Strict Quality Demands for Aqua Peel Handpiece Accessories
With the rapid growth of the medical aesthetics industry, South Korean clients demand extremely high standards for core hydradermabrasion handpiece accessories. As components that make direct contact with facial skin, the smoothness, friction level, and durability of the microdermabrasion sand layer on the cross mesh tip dictate user comfort and treatment safety.
The client required this accessory to be made of high-strength stainless steel. It not only needed to meet ultra-high precision tolerances at a miniature scale, but also guarantee absolutely “no sand shedding” during repeated ultrasonic cleaning. This required us to control the combined machining and electroplating yield rate at over 99% under a tight deadline—an extreme test of our capabilities in CNC machining for beauty equipment.
Micro-Tolerance
Micro-level Control
Core Process
Swiss CNC + Dual-Layer Plating
Designated Material
Medical-grade Stainless Steel
Delivery Yield Rate
Stable at 99%
Electroplating Shop
The Synergy of Foundational Precision and Electroplating
For these cutting-edge components showcasing CNC applications in the beauty industry, the real issue isn’t a single cutting parameter, but the perfect synergy between foundational machining precision and subsequent electroplating thickness. If the cross-slot’s micro-dimensions deviate during CNC machining, even flawless electroplating will result in an out-of-spec suction caliber, leading to negative pressure leaks in aqua peel machines.
Evaluation Dimension | Detailed Description |
Micro-Dimension Control | Swiss CNC turning of the stainless steel base must leave exact thickness allowances for the “dual-layer plating” with micro-level tolerances. |
Surface Adhesion Risk | Standard single-layer plating cannot secure the diamond sand against ultrasonic vibrations. Shedding destroys the tip’s reusability. |
Skin-Friendly & Friction | The smoothness of the suction edge and the uniformity of the sand grit directly impact friction, requiring maximum reduction in skin discomfort. |
Strict Delivery Standards | The entire process, backed by rigorous inspections, had to be completed within the specified period to hit the 99% yield target. |
Ensuring a 99% Yield Rate Through Process Teardown and Dual-Layer Plating
To overcome this, our team thoroughly deconstructed the manufacturing process for CNC diamond microdermabrasion accessories. We introduced high-precision Swiss-type lathes for automated forming and pioneered a dual-layer diamond sand plating process. Paired with strict quality control, this completely resolved the industry conflict between precision and sand shedding.
①Process Teardown
Designed custom micro-diameter tools for the cross slots and optimized tool paths to ensure a burr-free finish.
②Swiss Machining
Utilized Swiss-type lathes to guarantee the absolute dimensional accuracy of the stainless steel base.
③Dual-Layer Plating
Layer 1 is electroplated nickel for a solid base; Layer 2 is diamond sand, achieving ultra-strong adhesion.
④Ultrasonic QA
Repeated ultrasonic cleaning tests on every batch to ensure zero defects and absolutely no sand shedding.

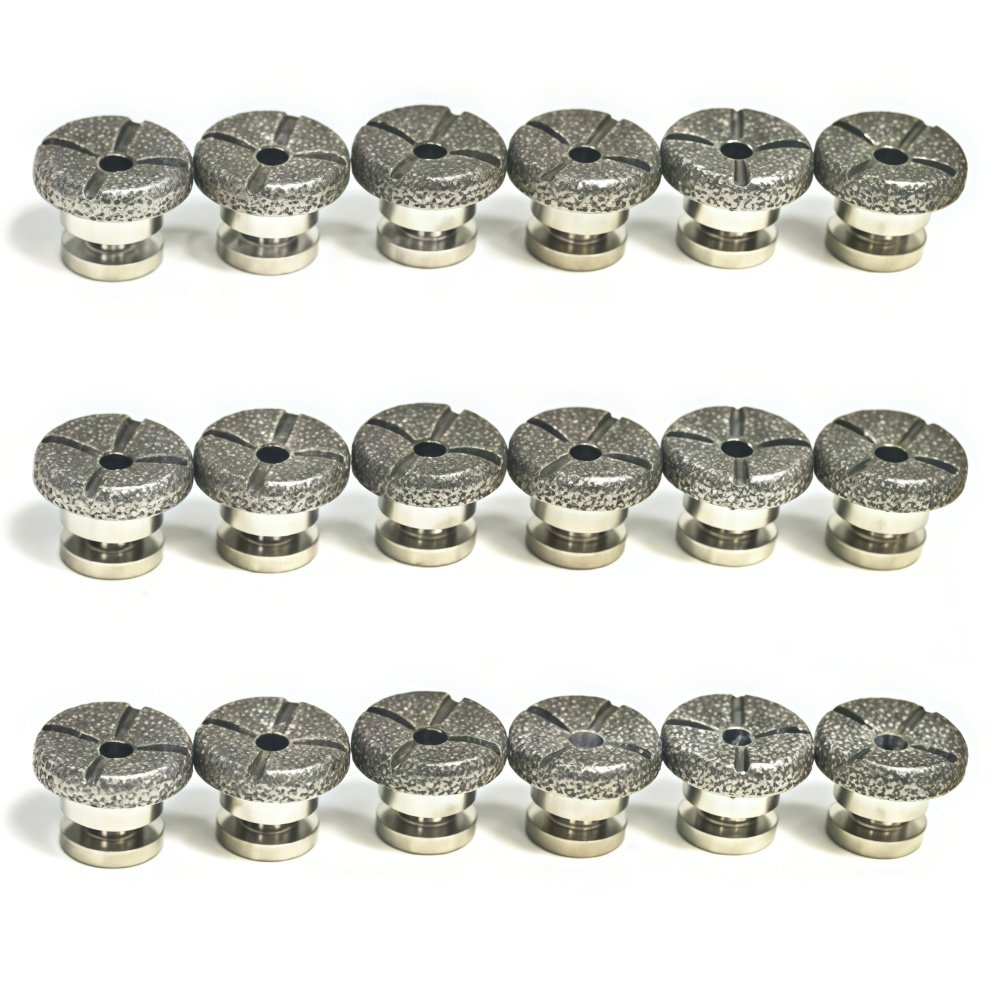

Perfect Delivery of 4 Specifications
Through stringent process control, we successfully delivered all four precision tip models to our South Korean client on time. The products strictly meet human skin contact standards with low friction, are highly easy to wash, and retain their sand even after repeated ultrasonic cleaning, permanently extending their reusable lifespan.
- 7*8 / 7*9 (Micro/Small Cross Mesh Tip, 200# Grit): Smaller suction caliber for concentrated negative pressure. Designed for targeted blackhead extraction and cleaning in tight dead zones like the sides of the nose, nasal grooves, and eye contours.
- 7*11 (Medium Cross Mesh Tip, 150# Grit): A universal transition size balancing suction power and contact area. Perfect for the chin, mid-forehead, and jawline.
- 7*13 (Large Cross Mesh Tip, 150# Grit): Maximum contact area for rapid cleaning on large flat areas like cheeks and foreheads, significantly boosting hydradermabrasion treatment efficiency.
- Stable High Quality: All plated products pass rigorous repeat-cleaning tests, stabilizing the final yield rate at 99%.
Stainless Steel CNC Machining Guide for Beauty Accessories
We are a full-service, highly capable hardware machining manufacturer. If you need to customize high-precision CNC parts and accessories for your beauty equipment, please review our core capabilities below:
Excels at high-precision cutting of complex geometries, irregular slots, and polyhedrons.
Designed specifically for high-precision, miniature shafts, and delicate medical/beauty accessories.
Efficient production of precision cylindrical metal, stainless steel, and engineering plastic parts.
Do you need custom precision parts for your beauty equipment?
Please feel free to contact our engineering team to get started.
